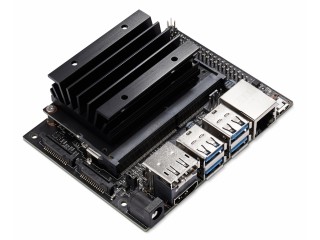

Nvidia Jetson Nano

SMALL. POWERFUL. POWERED BY AI.

[900-13448-0020-000]

More Image(s)

The Nvidia Jetson Nano is a small, powerful computer for embedded applications and AI IoT that delivers the power of modern AI
Availability: In stock

For details on how to purchase the Nvidia Jetson Nano , please click the button below to send us your details and brief requirements. We can then quote you accordingly.

Details

Bringing AI to millions of new systems at the edge

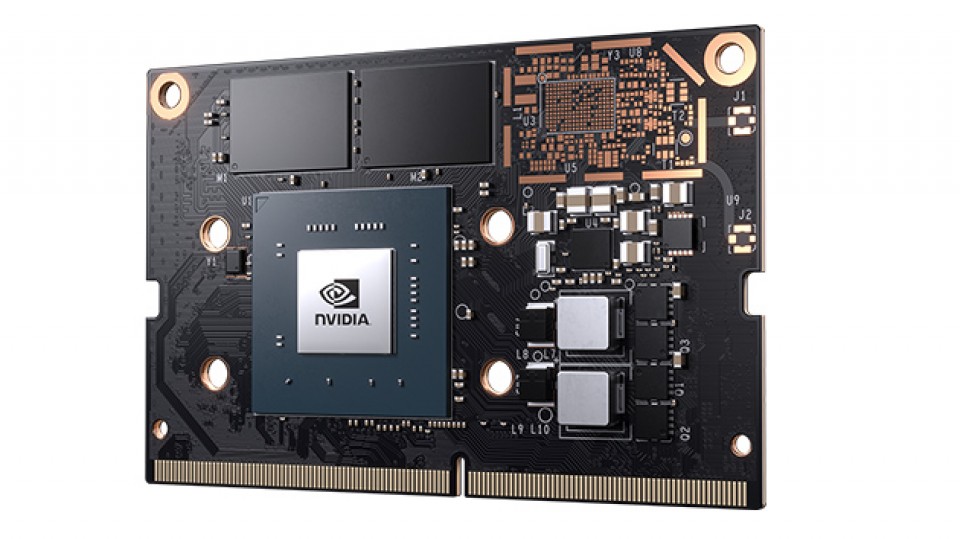

The NVIDIA® Jetson Nano™ module is opening amazing new possibilities for edge computing.

It delivers up to 472 GFLOPS of accelerated computing, can run many modern neural networks in parallel, and delivers the performance to process data from multiple high-resolution sensors—a requirement for full AI systems.

It’s also production ready and supports all popular AI frameworks.

This makes Jetson Nano the ideal platform for developing mass market AI products such as AIoT gateways, smart network video recorders and cameras, consumer robots, and optical inspection systems.

The system-on-module is powered by the NVIDIA Maxwell™ GPU with 4 GB of memory, which allows real-time processing of high-resolution inputs.

It offers a unique combination of performance, power advantage, and a rich set of IOs, from high-speed CSI and PCIe to low-speed I2Cs and GPIOs.

Plus, it supports multiple diverse sets of sensors to enable a variety of applications with incredible power efficiency, consuming as little as 5 W.

Jetson Nano is supported by NVIDIA JetPack™, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more.

The comprehensive software stack makes AI deployment on autonomous machines fast, reduces complexity, and speeds time to market.

The same JetPack SDK is used across the entire NVIDIA Jetson™ family of products and is fully compatible with NVIDIA’s world-leading AI platform for training and deploying AI software.

Part No. 900-13448-0020-000
End of Life? No
CPU Socket(s) 1
Compatible CPU(s) Quad-core ARM A57
Max CPU Clk Spd 1.43 GHz
Memory Slot(s) 4 GB 64-bit LPDDR4 25.6 GB/s
Capacity 16 GB eMMC 5.1
USB Port(s) 1x USB 3.0,
3x USB 2.0
PCI Slot(s) 1x1/2/4 PCIe Gen2
LAN Socket(s) Gigabit Ethernet
Graphics / GPU HDMI 2.0, eDP 1.4,
DP 1.2 (two simultaneously)
Graphics Cards 128-core Maxwell

Video Encode 4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265)
Video Decode 4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30
