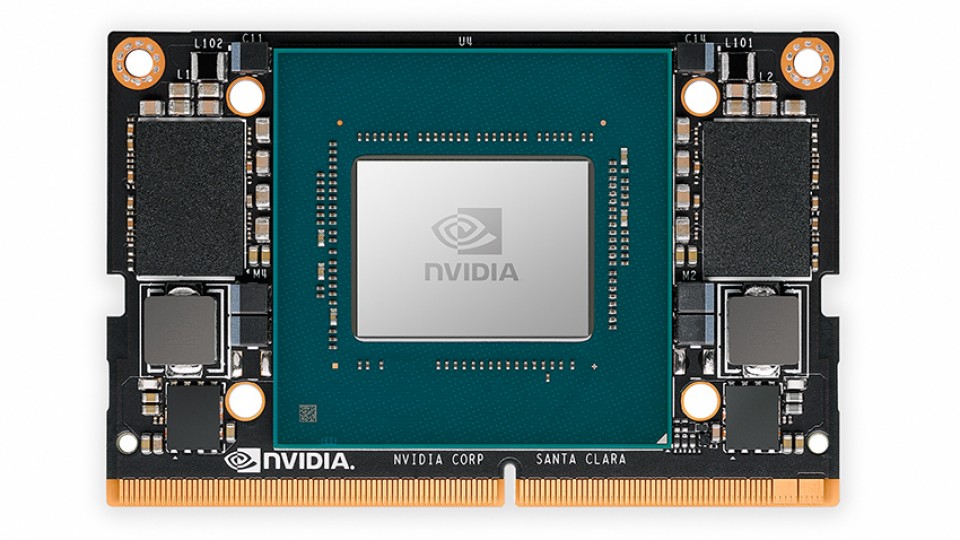

Nvidia Jetson Xavier NX
The World’s Smallest AI Supercomputer for Embedded and Edge Systems
[945-82972-0000-000]Details
XAVIER PERFORMANCE. NANO SIZE.
At 70 mm x 45 mm, Jetson Xavier NX packs the power of NVIDIA Xavier SoC into a module the size of a Jetson Nano.
This small module combines exceptional performance and power advantage with a rich set of IOs - from high-speed CSI and PCIe to low-speed I2Cs and GPIOs.
Take advantage of the small form factor, sensor rich interfaces and big performance to bring new capability to all your embedded AI and edge systems.
FOR CRITICAL EMBEDDED APPLICATIONS
Jetson Xavier NX is perfect for high-performance AI systems like drones, portable medical devices, small commercial robots, smart cameras, high-resolution sensors, automated optical inspection and other IoT embedded systems.
POWERFUL 21 TOPS AI PERFORMANCE
Jetson Xavier NX delivers 14 TOPS in 10 W and 21 TOPS in 15 W, making it ideal for size and power-constrained systems. With 384 CUDA Cores, 48 Tensor Cores, and 2 NVDLA engines, it can run multiple modern neural networks in parallel and process high-resolution data from multiple sensors simultaneously.
INCREDIBLE POWER EFFICIENCY
Jetson Xavier NX lets you use the entire NVIDIA software stack that runs all modern AI networks and frameworks with accelerated libraries for deep learning as well as computer vision, computer graphics, multimedia, and more.
And it still leaves more of your power budget for the sensors and peripherals required by today’s embedded applications.
Part No. | 945-82972-0000-000 |
---|---|
Manufacturer | nvidia |
End of Life? | No |
CPU Socket(s) | 1 |
Compatible CPU(s) | 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU |
CPU Cache | 6MB L2 + 4MB L3 |
Max # Core(s) | 6 |
Memory Slot(s) | 8 GB 128-bit LPDDR4x 51.2GB/s |
HDD Suitability | 16 GB eMMC 5.1 |
PCI Slot(s) | 1 x1 + 1 x4 (PCIe Gen3, Root Port & Endpoint) |
LAN Socket(s) | 10/100/1000 BASE-T Ethernet |
Graphics Cards | 384-core NVIDIA Volta™ GPU with 48 Tensor Cores Video Encode 2x464MP/sec 2x 4K @ 30 (HEVC) 6x 1080p @ 60 (HEVC) Video Decode 2x690MP/sec 2x 4K @ 60 (HEVC) 12x 1080p @ 60 (HEVC) 32x 1080p @ 30 (HEVC) |
Resolution (Native) | 2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0 |
