TimeKeeper Server

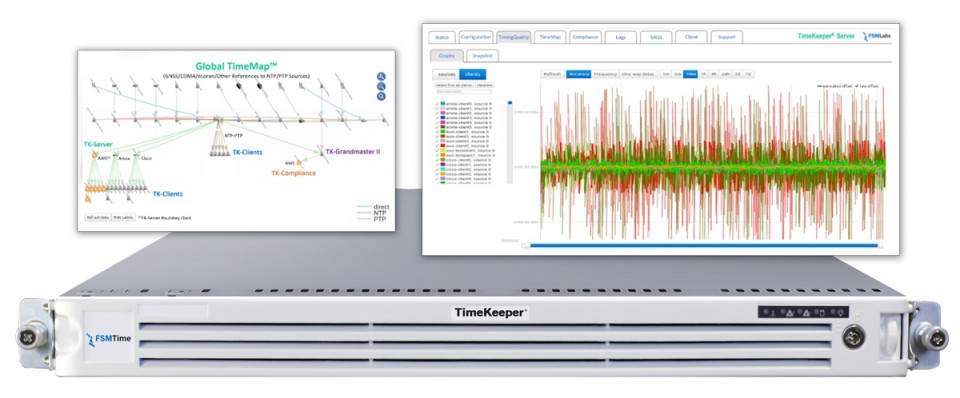

TimeKeeper Grandmaster II (TK-Grandmaster II) is an augmented, secure, second-generation, high-performance software-powered time server appliance for data center IT users, receiving any time source (GNSS, CDMA, NTP, PTP, and others) and serving time over multiple ultrahigh-speed, hardware-timestamped < 10/25/40/100GbE NTP/PTP ports at < 30ns precision. Powered by TK-Server software, TK-Grandmaster II provides augmented analytics, real-time monitoring, and time sync management, including patented anti-jamming and -spoofing SkyMap capabilities, and integrates an enhanced near-Rb-performance OCXO or a Rb holdover oscillator, coupled with a multi-constellation GNSS receiver. Moreover, it provides powerful client management, including configuration, monitoring, fault, logging, performance, clock sync chain topology visualization, alert, notification and security.
How the TimeKeeper Grandmaster II Works
TK-Server integrates the machine learning (ML)-based TimeKeeper Client (TK-Client) product as well as innovative, scalable features for resilient, reliable, and UTC-traceable enterprise clock sync.
- GNSS SkyMap™ Anti-Threat Trusted Sources
- Enhanced Holdover Clock
- SecureTime™
- Web Management Dashboard
GNSS SkyMap Anti-Threat Trusted Sources
The SkyMap technology is a patented GNSS analytics tool, monitoring real-time performance, threat, and resilience of multi-GNSS time references and accepting only trusted time sources for reliable, quality NTP/PTP time serving of the enterprise clock sync network. Threats such as spoofed and jammed signals are automatically detected and mitigated by SkyMap, rejecting inaccurate or compromised sources. Vulnerable or invalid sources are graphically visualized (see purple areas below), showing the map location and sky view of the affected GNSS antenna, with SkyMap providing user alerts and audit logs.
Enhanced Holdover Clock
TK-Grandmaster II is equipped with smart GNSS-disciplined clock sync technology with either a crystal or an atomic rubidium oscillator, which greatly enhances the holdover or timekeeping capability of the enterprise clock sync in case of lost or compromised GNSS time sources.
SecureTime
SecureTime tracks multiple secure time sources that are verified, validated, and cross-checked by SkyMap, by TK-Server’s network TimeMonitor™ and TimeMap™, and by TimeKeeper Client’s (TK-Client) TrustedTime™ multisource failover capability, ensuring client time sources are fault-tolerant for time-critical enterprise applications. SecureTime also provides transparent failover for redundant TK-Grandmaster II appliances.
TimeKeeper Clock Sync Chain
TimeKeeper Platform is fault-tolerant, making enterprise clock sync resilient end-to-end and providing trusted sub-microsecond accuracy performance to TK-Clients' application servers and VMs. The TK-Compliance tool ensures that the integrity of the enterprise clock sync chain of connected time sync devices, with TimeIQTM intelligence and TrustedTime accuracy assurance to UTC traceability, is fully compliant to MiFID II, FINRA, and CAT regulations at all times.
| Part No. | fsm-tks-gm |
|---|---|
| End of Life? | No |
