AMD EPYC™ 7002 Series Processor (Rome)
The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability – designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing.
- Built on 7nm advanced process technology, allowing for denser compute capabilities with lower power consumption.
- Up to 64 core per CPU, built using Zen 2 high performance cores and AMD’s innovative chiplet architecture.
- Supporting PCIe Gen 4.0 with a bandwidth of up to 64GB/s, twice of PCIe Gen 3.0
- Embedded security protection to help defend your CPU, applications, and data.
PCIe Gen 4.0 Ready
AMD EPYC Rome is ready to support PCIe Gen 4.0 with a bandwidth of 64GB/s, twice that of PCIe Gen 3.0.
This doubles the bandwidth available from the CPU to peripheral devices such as graphics cards, storage devices and high speed network cards. GIGABYTE’s AMD EPYC 7002 Series server platforms are ready to be used with a new generation of PCIe Gen 4.0 devices such as AMD’s Radeon MI50 GPGPU.
The PCIe 4.0 standard supports a 16 GT/s bit rate, (roughly 2GB/s per single lane) as opposed to 8GT/s bit rate for PCIe 3.0 (1GB/s).
Higher Memory Speed
On previous AMD server platforms, memory speed has been automatically downgraded by design when a user installed two DIMMs per channel.
GIGABYTE has now developed a unique solution to overcome this performance downgrade headache: with our new 2nd Generation AMD EPYC 7002 Series server platforms, maximum memory speed (3200Mhz) is now supported even when using 2 DIMMS per channel*. GIGABYTE’s server platforms give you the performance edge, with more memory capacity at faster speeds than competing solutions!.
Intelligent Power Management Features
Cold Redundancy: When the total system loading falls lower than 40%, the system will automatically place one PSU into standby mode, enabling the other PSU to take over the greater load. This can enable total system power efficiency savings of up to 10%.
SCMP (Smart Crises Management / Protection): SCMP is a GIGABYTE patented feature that will automatically force the system’s CPU to enter ULFM (ultra-low frequency mode for minimum power consumption) when the BMC is alerted to a PSU fault or error (such as power loss, power surge, overheating or a fan problem). This feature will prevent shutdown in systems with less than 1 + 1 PSU redundancy when one PSU is lost.
Dynamic Fan Speed Control
GIGABYTE servers are enabled with dynamic fan speed adjustment.
Individual fan speed will be automatically adjusted according to the system’s current temperature (according to CPU, DIMM, M.2, HDD, GPU temperature sensors), to achieve the best cooling and power efficiency. When the BMC detects a temperature change, fan speed will be automatically adjusted accordingly. Fan speed profiles may also be manually created and edited when necessary according to the user’s custom requirements.

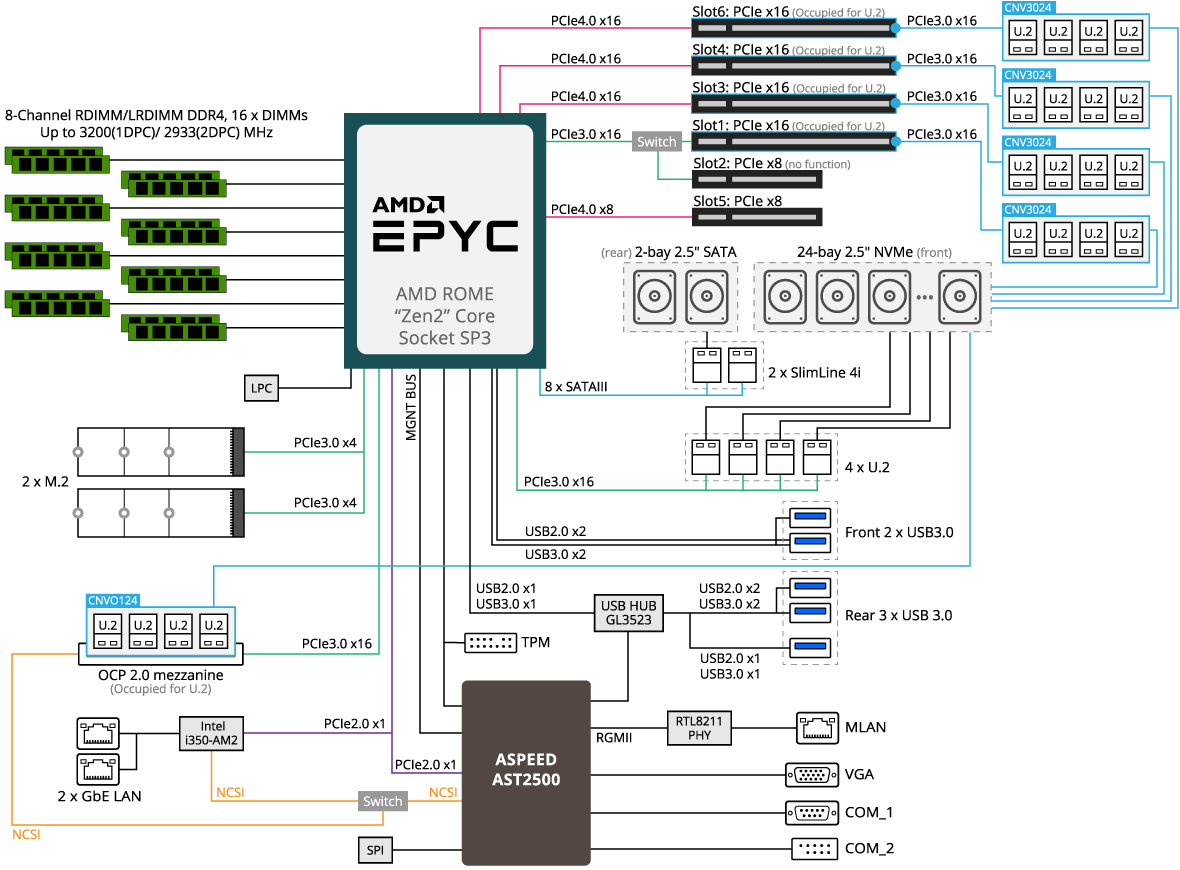

R272-Z32 System Block Diagram
Efficient, Reliable Power Supply
GIGABYTE’s AMD EPYC 7002 Series server are designed to guarantee high conversion efficiency regardless of load.
Redundant 80 Plus ‘Titanium’ or ‘Platinum’ PSUs, combined with GIGABYTE’s precision engineering, translates to super efficient power usage which maximizes the system’s power:performance ratio and reduces OPEX for the user.
Part No. | R272-Z32 |
---|---|
Manufacturer | Gigabyte |
End of Life? | No |
Rack Units | 2 |
CPU Socket(s) | 1 |
Compatible CPU(s) | AMD EPYC 7002 Series (Rome) |
Max # Thread(s) | 16 to 128 |
Max # Core(s) | Scale from 8 to 64 |
Memory Slot(s) | 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs |
Memory Capacity | Up to 3200MHz RDIMM modules up to 64GB supported LRDIMM modules up to 128GB supported |
Drive Bays | Total 26 x 2.5" hot-swappable HDD/SSD bays - Front side: 24 x 2.5" NVMe hot-swappable SSD bays - Rear side: 2 x 2.5" SATA/SAS hot-swappable HDD/SSD bays |
Supported OS | Windows Server 2016 ( X2APIC/256T not supported) Windows Server 2019 Red Hat Enterprise Linux 7.6 ( x64) or later Red Hat Enterprise Linux 8.0 ( x64) or later SUSE Linux Enterprise Server 12 SP4 ( x64) or later SUSE Linux Enterprise Server 15 SP1 ( x64) or later Ubuntu 16.04.6 LTS (x64) or later Ubuntu 18.04.3 LTS (x64) or later VMware ESXi 6.5 EP15 or later VMware ESXi 6.7 Update3 or later Citrix Hypervisor 8.1.0 |
USB Port(s) | Internal IO: 1 x USB 3.0 1 x USB 2.0 Front IO: 2 x USB 3.0 Rear IO: 3x USB 3.0 |
PCI Slot(s) | Total 6 x low profile PCIe Gen4 / Gen3 expansion slots Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot; Occupied by CNV3024, 4 x NVMe HBA Slot_5: 1 x PCIe x16 (Gen4 x8 bus) slot Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot; Occupied by CNV3024, 4 x NVMe HBA Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot; Occupied by CNV3024, 4 x NVMe HBA Slot_2: 1 x PCIe x8 (Gen3 x0 or x8 bus) slot; no function Slot_1: 1 x PCIe x16 (Gen3 x16 or x8 bus) slot; Occupied by CNV3024, 4 x NVMe HBA 1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16; Occupied by CNVO124, 4 x NVMe HBA 2 x M.2 slots: - M-key - PCIe Gen3 x4 - Supports NGFF-2242/2260/2280 cards |
LAN Socket(s) | 2 x 1GbE LAN ports (1 x Intel® I350-AM2) 1 x 10/100/1000 management LAN |
