Details
Flexible Entry-level Server Configurations Tailored to HPC and Deep Learning

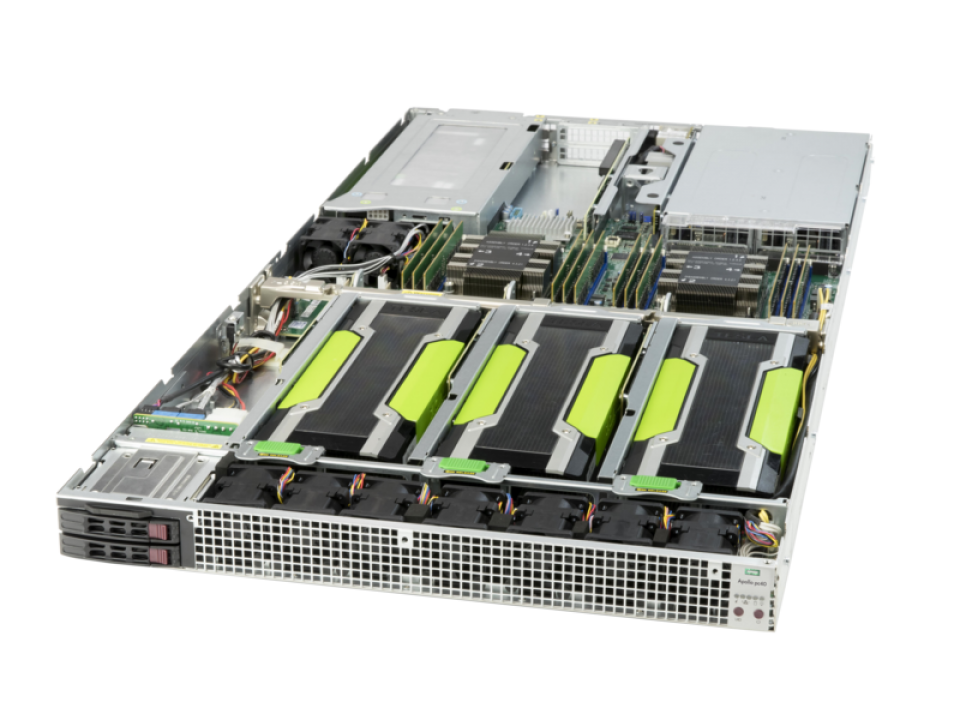

The HPE Apollo pc40 Server features up to four NVIDIA Tesla PCIe graphic processing units (GPUs) to accelerate mixed-application HPC computing as well as deep learning workloads. The PCIe form factor can allow for a greater selection of accelerators and GPUs than alternate form factors.
Optimize the server for required workloads by choosing from the available CPUs in the Intel Xeon Processor Scalable Family, up to twelve 2666MHz DDR4 DIMMs, optional network adapters, and up to two SFF hard drives or solid state drives.
Fully integrated and factory tested clusters are delivered with a complete cluster management software stack to simplify deployment and management, and can be custom configured for perfect right-sizing.
Multiple network topologies are supported in cluster builds: Fat Tree, Hypercube, and Enhanced Hypercube for increased flexibility.
The server is readily integrated into a standard cluster environment.
Right-sized Compute for Infrastructure Efficiency
The HPE Apollo pc40 Server is air-cooled for easy integration into standard server environments.
The system is designed for energy efficiency with dual 2000W Titanium Power Supplies to drive these powerful GPUs.
Select the right-sized network topology for the target cost model. For example, Fat Tree can be a strong, general purpose fabric which is effective for small systems, but can be expensive for large systems.
Integrated IPMI 2.0 enables standards-based systems management.
Expertise and Resources for Operational Efficiency
The HPE Apollo pc40 Server alongside HPE Pointnext services offerings, deliver expertise in HPC, data management, visualization, systems management, and high performance data analysis (HPDA).
Expect responsive global support.
Enables custom solutions, as one size does not fit all requirements.
Committed account and technical resource teams.
| Part No. | Apollopc40 |
|---|---|
| Manufacturer | HPE |
| End of Life? | No |
| CPU Socket(s) | 2 |
| Compatible CPU(s) | Intel® Xeon® Processor Scalable family Ranging from Xeon Silver 4100 series to Xeon Platinum 8100 series Please consult technical sheet for a full list of compatible CPU's |
| Memory Slot(s) | Up to twelve 2666MHz DDR4 DIMMs |
| Memory Capacity | 1.5 TB (12x 128 GB) |
| Drive Bays | Maximum Internal storage: HPE 1TB SATA 7.2K SFF RW 512n DS HDD 2x 1 TB HPE 2TB SATA 7.2K SFF RW 512e DS HDD 2x 2 TB HPE 240GB SATA MU SFF RW DS SSD 2x 240 GB HPE 480GB SATA MU SFF RW DS SSD 2x 480 GB HPE 960GB SATA MU SFF RW DS SSD 2x 960 GB HPE 1.92TB SATA MU SFF RW DS SSD 2x 1.92 TB HPE 3.84TB SATA RI SFF ST DS SSD 2x 3.8 TB |
| Supported OS | Red Hat Enterprise Linux (RHEL) SUSE Linux Enterprise Server (SLES) CentOS |
| USB Port(s) | 2x USB 3.0 |
| PCI Slot(s) | 4 PCIe Gen 3 x16 Slots |
| LAN Socket(s) | Ethernet Options HPE Ethernet 10Gb 2-port 535T Adapter HPE Ethernet 10Gb 2-port 571SFP+ Adapter HPE Ethernet 10Gb 2-port 561T Adapter InfiniBand Options HPE IB EDR/EN 100Gb 1-port 840QSFP28 Adapter HPE IB EDR/EN 100Gb 2-port 840QSFP28 Adapter HPE 100Gb 1-port OP101 QSFP28 x16 OPA Adapter |
