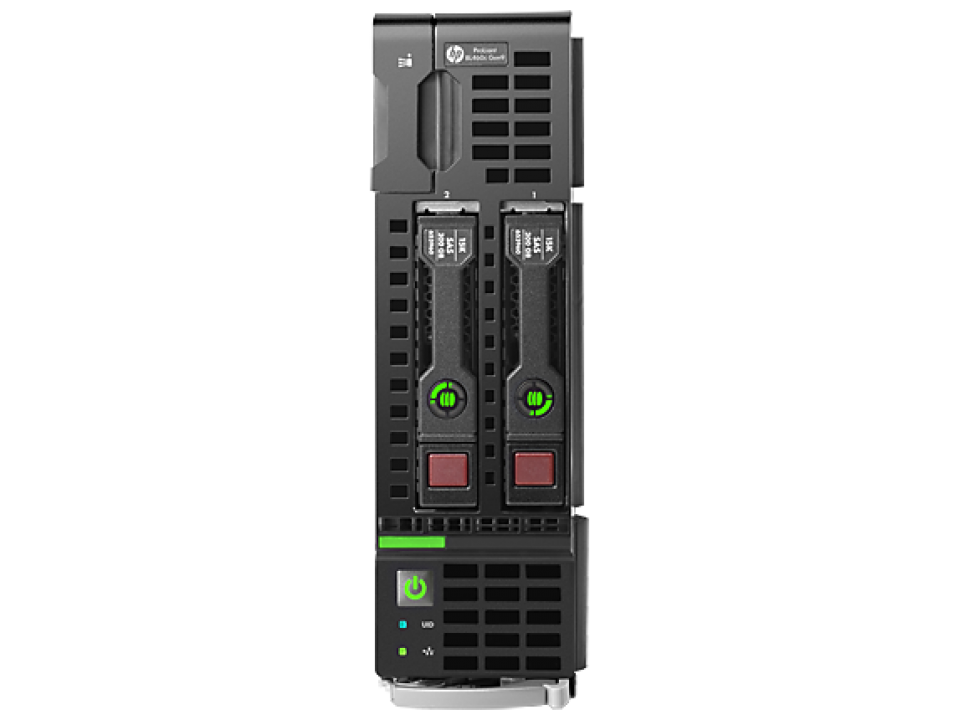

HP ProLiant BL460c Gen9 Server Blade
The world’s leading server blade with advanced compute performance
[hpbl460gen9]
Designed for a wide range of configuration and deployment options, the HP ProLiant BL460c Gen9 Server Blade provides the flexibility to enhance your core IT applications with right-sized storage for the right workload.
Availability: In stock
Details
Part No. | hpbl460gen9 |
---|---|
Manufacturer | HP |
End of Life? | No |
Preceeded By | BL460c Gen8 |
Weight [Kg] | 13.50 |
CPU Socket(s) | 1–2 Intel Xeon E5-2600 v3 |
Compatible CPU(s) | E5-2690v3 (2.6GHz/12-core/30MB/135W); E5-2680v3 (2.5GHz/12-core/30MB/120W); E5-2670v3 (2.3GHz/12-core/30MB/120W); E5-2660v3 (2.6GHz/10-core/25MB/105W); E5-2650v3 (2.3GHz/10-core/25MB/105W); E5-2640v3 (2.6GHz/8-core/20MB/90W); E5-2683v3 (2GHz/14-core/35MB/120W); E5-2630v3 (2.4GHz/8-core/20MB/85W); E5-2620v3 (2.4GHz/6-core/15MB/85W); E5-2623v3 (3GHz/4-core/10MB/105W); E5-2609v3 (1.9GHz/6-core/15MB/85W); E5-2603v3 (1.6GHz/6-core/15MB/85W); E5-2650Lv3 (1.8GHz/12-core/30MB/65W); E5-2698v3 (2.3GHz/16-core/40MB/135W); E5-2630Lv3 (1.8GHz/8-core/20MB/55W); E5-2695v3 (2.3GHz/14-core/35MB/120W); E5-2637v3 (3.5GHz/4-core/15MB/135W); E5-2697v3 (2.6GHz/14-core/35MB/145W); E5-2667v3 (3.2GHz/8-core/20MB/135W); E5-2643v3 (3.4GHz/6-core/20MB/135W); E5-2699v3 (2.3GHz/18-core/45MB/145W) |
Max CPU Clk Spd | Up to 3.5 GHz |
CPU Cache | Up to 45 MB per Socket |
Max # Thread(s) | Up to 36 per Socket |
Max # Core(s) | 4/6/8/10/12/14/16/18 cores per Socket |
Memory Slot(s) | 16 DDR4 Registered (RDIMM) or Load Reduced (LRDIMM) |
Memory Capacity | Up to 512 GB |
Drive Bays | Two hot-plug drive bays SATA/SAS/SSD |
RAID Controller | Standard HP Dynamic Smart Array B140i with choice of HP Smart HBA H244br or HP Smart Array P244br for performance or additional features |
RAID Options | 1 GB DDR3-1,866 MHz, 72-bit wide bus at 14.9 GB/s on P244br; |
Supported OS | Microsoft Windows Server; Red Hat Enterprise Linux (RHEL); SUSE Linux Enterprise Server (SLES); Canonical Ubuntu; Oracle Solaris; VMware |
USB Port(s) | 1 x USB 3.0 (internal), 1 x microSD, future optional Dual microSD/future optional M.2 support |
PCI Slot(s) | Two x 16 PCIe 3.0 I/O expansion slots can support the highest performing mezzanine option cards now, as well as in the future. |
LAN Socket(s) | Choice of 2 x 10GbE, FlexFabric 10 GB, FlexFabric 10/20 GB |
Graphics / GPU | Integrated Matrox G200eh video controller |
Standard | Three-year parts, three-year labour, three-year onsite |
HP ProLiant BL460c Gen9 Server Blade 727021-B21
