Unmatched storage performance and flexibility for Artificial Intelligence and Deep Learning.

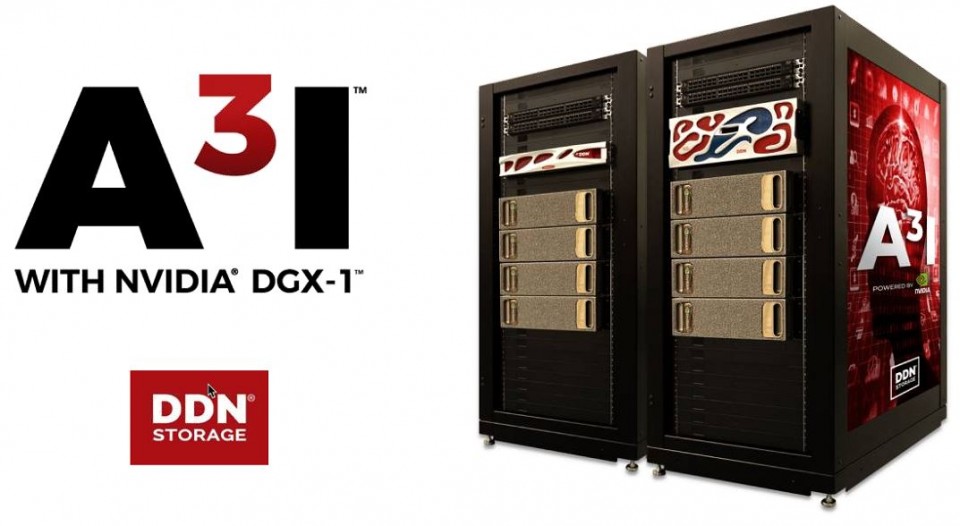

DDN A³I storage appliances are specifically designed for AI and Deep Learning workloads using a Parallel file system. Connectivity is via Infiniband or 100Gb Ethernet. DDN A³I is Nvidia certified for use with GPU infrastructure.
Details
DDN’s A3I Accelerated, Any-Scale AI
A3I solutions are optimized for ingest, training, data transformations, replication, metadata and small data transfers. DDN offers flexibility in platform choice with the all-flash NVMe AI200/AI400 or AI7990, a hybrid flash and hard drive storage platform which leverages parallel access to flash and deeply expandable HDD storage. The AI200/AI400 and AI7990 support a scale-out model with solutions starting at a few TBs yet scalable to 10s of PBs.
Fully Integrated, GPU-Optimized Data Platforms
Easy to deploy, A3I solutions are turn-key, pre-configured, and provide the most capable scale-out platform for capacity and performance.
Full GPU Saturation
Fully optimized for all types of I/O patterns and data layouts, A3I solutions deliver data to applications, ensuring full GPU resource utilization even with distributed applications running on multiple computing servers.
Performance testing on the DDN A3I architecture has been conducted with all widely-used DL frameworks (TensorFlow, Horovod, Torch, PyTorch, NVIDIA® TensorRT™, Caffe, Caffe2, CNTK, MXNET and Theano). Using the A3I intelligent client, containerized applications can engage the full capabilities of the data infrastructure, and that the AI servers achieves full GPU saturation consistently for DL workloads.
Capacity-Efficient AI Storage
A3I solutions provide flexible capacity expansion options, with up to 240TB of scale-out NVMe capacity per AI200/AI400 appliances, or 5.4PB of hybrid storage in the AI7990.
Highest Resiliency, Reliability, and Security at Scale
Engineered to provide the highest data availability and maximum system uptime, all A3I hardware and software components are integrated as a fully redundant system.
Unified Namespace
A3I solutions allow for consolidation of hot training data and warm expanding data libraries into a single platform, providing easy data access from a unified interface.
Multi-Tenancy and Quota Support
A3I solutions can be secured on a per-tenant basis that ensure users and applications can only access the data that they’re entitled to. Advanced quota controls provide easy management of file system consumption at the user, group, and project level.
Part No. | DDNAI3 |
---|---|
End of Life? | No |
Width | 610 |
Height | 1900 |
Depth | 1190 |
Weight [Kg] | 66.70 |
Rack Units | 4U |
Compatible CPU(s) | x86 Processors |
Drive Bays | 24 x 2.5” dual port NVMe 90 x 3.5” drive slots support Enterprise-grade SSDs and HDDs Up to 4 additional 90-bay expansion drive enclosures |
Capacity | 14 TB - 1 PB+ |
LAN Socket(s) | Ethernet (TCP and RDMA) Infiniband |
LAN Controller(s) | 2-20 Active-Active Controllers |
Serial Ports | 1-40 @ 40/100GBE Ports |
Storage Controller | (NVMe-oF) and FILE (NFS) Protocols |
RAID Options | RAID-6, Snapshots Thin Provisioning |
