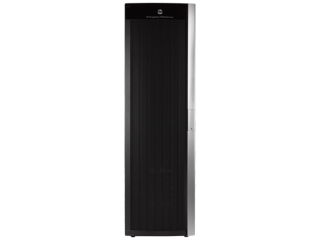

HP XP P9500 Disk Array

bulletproof storage for mission-critical Converged Infrastructure

[AV339A]

More Image(s)

Does your data center fear a catastrophic failure? The HP P9500 XP Disk Array is bulletproof storage for mission-critical Converged Infrastructure where constant access to data is required—even in the event of a disaster. Designed for organizations that cannot afford any downtime, the P9500 XP combines a high-performance online scalable fully redundant hardware platform with unique data replication capabilities integrated with clustering solutions for complete business continuity. The HP P9000 XP Software Family decreases the complexities of critical data management.
Availability: In stock

For details on how to purchase the HP XP P9500 Disk Array, please click the button below to send us your details and brief requirements. We can then quote you accordingly.

Details

Through thin provisioning, organizations can improve storage utilization. Virtualization simplifies the management of diverse systems. Smart Tiers improve storage performance and controls costs. Application Performance Extender provides quality of service so resources can be used effectively. Consolidation becomes a reality by managing open systems, mainframe, and HP NonStop applications all on a single P9500 XP.

Resilient Constant Data Availability Allows Operations to Continue No Matter What Happens

  • Operating a business demands constant uptime; the risk of data loss or downtime is always at the forefront. The HP P9500 XP Disk Array mitigates that risk, since all components are redundant, hot-swappable, and can be upgraded online.
  • With a large-scale disaster, you need to not only have high levels of data protection but also business continuance. P9500 XP Disk Array supports a clustering solution that allows remote mirroring to be integrated with a high availability server cluster to provide multi-site disaster recovery.
  • Your data is protected even if power goes out as the P9500 XP Disk Array write cache data is backed up in a Solid State Drive. RAID 6 adds fault tolerance. Continuous Track checks the P9500 XP for unseen issues, and the end-to-end checksum confirms data integrity from host port to disk and back.
  • Decrease your exposure to data loss with the security features in the HP P9000 XP Array Manager Software. Reduce the risk of unauthorized access, prevent unauthorized modification, and protect your information at the end of its lifecycle by completely deleting data on a specified volume.

Reduce the Cost and Complexity of Storage Through Efficient Data Management

  • Increase data center efficiency using the HP P9500 XP Disk Array virtualization with Thin Provisioning Software, heterogeneous External Storage, local and remote multi-site replication, smart tiered capacity, and online data migration.
  • The P9500 XP has an easy to use task based GUI; Common/Consistent Command Line Interface (CLI); simplified serviceability, and simple provisioning with one-click volume creation, dynamic/automatic provisioning and optimization.
  • Save power and cooling costs on the P9500 XP with thin provisioning and smart tiers that decrease stranded storage, thereby reducing the unused storage that consumes power, requires cooling, and takes up space.
  • The P9500 XP uses standard size 19-inch racks with 2.5-inch form factor drives to easily fit into existing data center space and improves the capacity/square meter.
  • Simplify operations and reduce costs by consolidating multiple applications onto a single P9500 XP. By having multiple hosts running diverse operating systems connected to the P9500 XP, you can better manage the environment and simplify the implementation of backups and disaster recovery solutions.

Accelerate Business Growth with Swift Adaptability

  • Thin provisioning provides the flexibility you need to respond quickly to new demands on the P9500 XP. You can now configure all the capacity you will need for the future, only buy what you need today. HP P9000 XP Thin Provisioning Software automatically allocates capacity as applications need it.
  • The dilemma of overbuying capacity today or planning for a costly “forklift” upgrade tomorrow is now history. The P9500 XP Disk Array scales seamlessly. Main components can be added or replaced without shutting down critical operations. Simply buy what you need now and grow as your needs change.
  • With the P9500 XP Disk Array you get ultimate performance for your 24/7 demands to deliver your critical data at break-neck speed.
  • The P9500 XP Disk Array offers the flexibility you need to meet your performance and availability objectives.
Manufacturer HP
Part No. AV339A
Width 610
Height 2006
Depth 1145
Weight [Kg] 477.73
Rack Units 42 U
Drive Bays (2048) SFF SAS
Storage Capacity 2PB Raw;
1.76PB Useable;
255PB External Storage
Cache 512 GB
Host Interface / Link Speeds 8 Gb Fibre Channel (160) Ports or 8 Gb FICON (160) Ports or 10 Gb FCoE (80) Ports
Supported OS HP NonStop;
HP OpenVMS;
HP-UX;
IBM AIX;
Linux;
Mainframe;
Microsoft Windows;
Oracle Solaris;
VMware
RAID Options RAID 1 (2D + 2D), RAID 1 (4D + 4D), RAID 5 (3D + 1P), RAID 5 (7D + 1P), RAID 5 (14D + 2P), RAID 5 (28D + 4P), RAID 6 (6D + 2P)
Standard 3 Years, 24x7, 4hr
