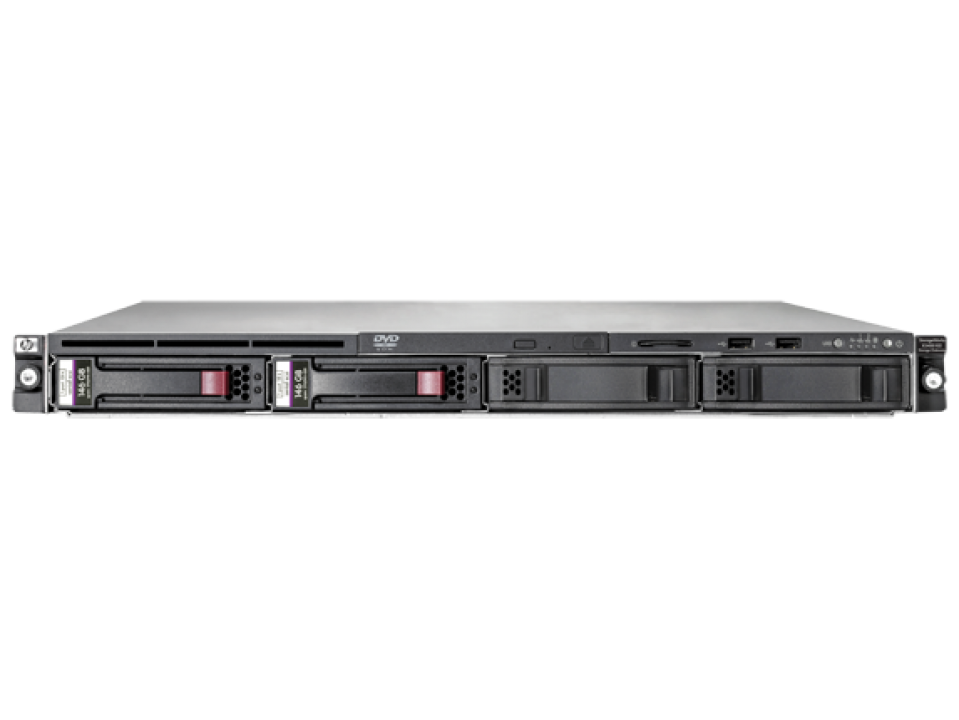

HP P4000 G2 Unified NAS Gateway System
IP-based gateway services for P4000 SAN Solutions built on industry standards.
[BV875A]
HP P4000 G2 Unified NAS Gateways boost the value of your P4000 SAN by adding Windows-powered IP-based gateway services to it. You'll spend less time and effort on maintenance and deliver a better return-on-investment for your SAN when you consolidate to a single, unified storage pool that can serve files to your clients and blocks to your servers via the iSCSI protocol. Industry-standards protect your investment by providing compatibility with your network and applications, and a Microsoft Cluster Server (MSCS) license is included to provide high availability and reduce downtime.
Availability: In stock
Details
What is a P4000 G2 Unified NAS Gateway
HP P4000 G2 Unified NAS Gateways are enhanced Windows-powered gateways for your medium business, workgroup, or datacenter environment. They are built on industry-standard HP ProLiant servers and come with the Microsoft® Windows Storage Server 2008 R2 Enterprise operating system -- including cluster services -- pre-installed. They connect via Ethernet and add file, print, and management services to a P4000 SAN to build an affordable and highly-available unified storage solution. Since HP P4000 G2 Unified NAS Gateways are Windows-based, integration into your Windows environment is easy, your antivirus and backup applications run right on the box, and management has a familiar look and feel.
| Manufacturer | HP |
|---|---|
| Part No. | BV875A |
| Width | 448 |
| Height | 43.2 |
| Depth | 682 |
| Weight [Kg] | 15.20 |
| Rack Units | 1 U |
| CPU Socket(s) | 1 |
| Compatible CPU(s) | Intel® Xeon® E5503 (2.0GHz/2-core/4MB/80W) Processor |
| Max # Thread(s) | 2 |
| Max CPU Clk Spd | 2 GHz |
| Max # Core(s) | 2 |
| CPU Cache | 4 MB |
| Drive Bays | (2) LFF SAS Per node, included, for O/S mirror only |
| Capacity | 600 GB Raw Internal SAS - 0 GB Useable; Drives come with OS preinstalled; Designed to utilize external P4000 array |
| HDD Suitability | 2 x HP 300GB 6G SAS 15K 3.5in DP ENT HDD (OS mirror) |
| Storage Capacity | Attach to P4000 G2 arrays |
| Supported OS | Windows Storage Server 2008 R2, Enterprise x64 Edition pre-installed |
| LAN Socket(s) | Embedded Gigabit Server Adapters; Additional 4 port NC364T Gigabit Server Adapter standard |
| LAN Controller(s) | HP NC326i Integrated Dual Port Gigabit Server Adapter |
| PCI Slot(s) | 2 x PCIe (one slot occupied by Smart Array Controller and one slot occupied by NC364T) |
| Storage Controller | HP SA P212/256 BBWC 1-ports Int/1-ports Ext PCIe x8 SAS Controller |
| RAID Controller | HP Smart Array P212/256MB Controller with battery-backed write cache (BBWC) |
| RAID Options | 0/1/1+0/5/5+0, 6, 6 + 0 |
| Standard | HP P4000 G2 Unified NAS Gateways come with a standard 3-3-3 warranty (3 years parts exchange, 3 years labor and 3 years onsite, next business day response). |
BV875A; BV876A
