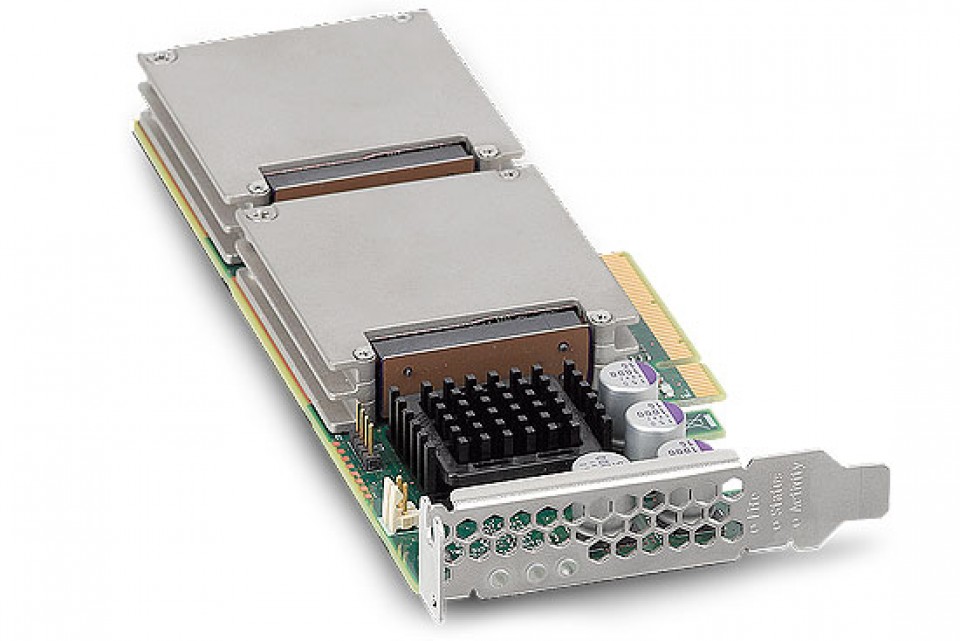

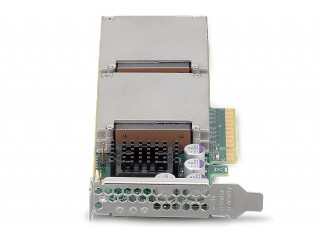

Oracle Sun Flash Accelerator F80 PCIe Card
Accelerate your databases and I/0-Starved Applications
[f80]Details
Accelerating Your I/O Starved Applications
Today’s demanding, high-performance applications increasingly are being starved by slow storage I/O, resulting in poor application performance and business response. The Sun Flash Accelerator F80 PCIe Card is designed to deliver extremely high I/O performance with consistently low latency and minimum CPU burden to help accelerate applications and eliminating storage I/O bottlenecks, whether used as in-server flash cache or storage.
High Performance and Reliability
The Sun Flash Accelerator F80 PCIe Flash Card is built on the latest enterprise-class solid-state technology with advanced controllers and sophisticated error correction features to help deliver consistently high level of performance, endurance and reliability under some of the most demanding conditions. The Sun Flash Accelerator F80 PCIe Card deliver performance that equals hundreds of spinning hard disk drives (HDD) in a single low-profile PCIe slot with no moving parts for greater reliability and power efficiency.
High Endurance and End-to-End Data Protection
The Sun Flash Accelerator F80 PCIe Cards uses enterprise-rated, high-endurance NAND (eMLC) technology. Advanced on board controllers extend write endurance up to 20x that of standard flash controllers for greater reliability. Sophisticated algorithms provide advanced error-correction, over-provisioning, and wear leveling for improved efficiency and data integrity. Battery-less power fail protection and circuitry provide end-to-end data protection and fast (5 seconds) power fail recovery. Proactive heath monitoring features provide an added level of security and durability.
Oracle Optimised
Oracle’s Sun Flash Accelerator F80 PCIe Card is optimized for Oracle’s systems and software to deliver the highest level of performance, efficiency, reliability, and ease-of-use.
Media Type | Enterprise Multi-Level Cell (eMLC) |
---|---|
Form Factor | Low Profile PCIe |
Capacity | 800 GB |
Host Interface / Link Speeds | 4 x 6Gb/s SAS/SATA2 controllers (1 per domain) |
Random Read IOPS | 155,193 |
Random Write IOPS | 133,390 |
Read Latency | 230 ms |
Write Latency | 84 ms |
Sequential Read Rate | 2.099 GB/sec |
Sequential Write Rate | 1.254 GB/sec |
Manufacturer | Sun Oracle |
Part No. | f80 |
End of Life? | No |
Weight [Kg] | 1.00 |
