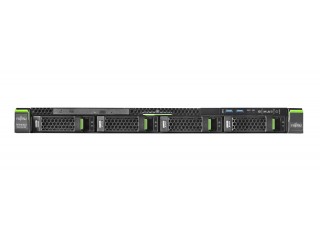

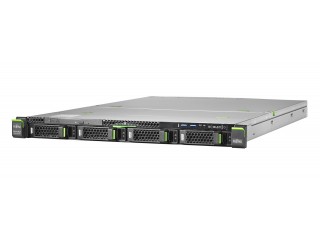

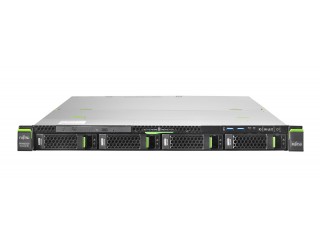

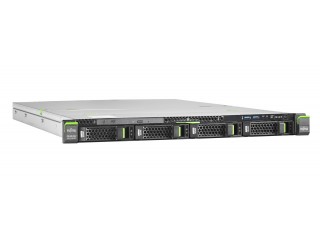

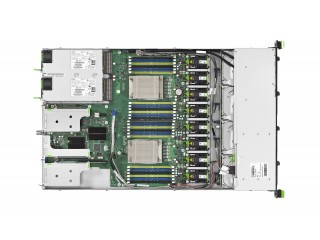

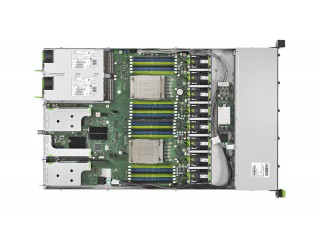

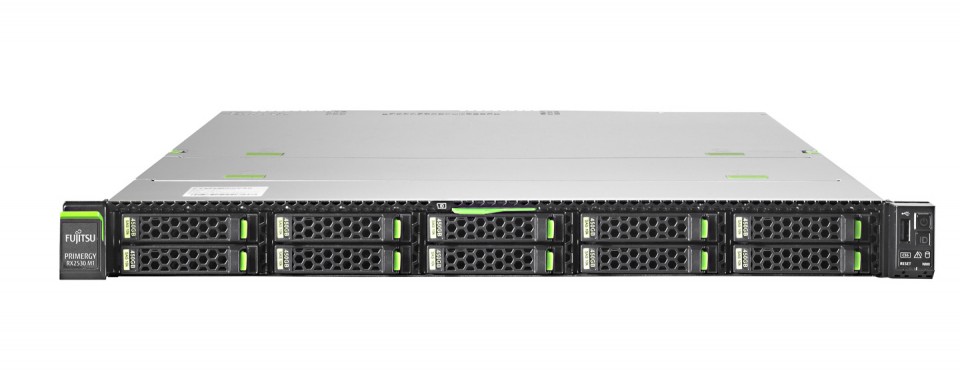

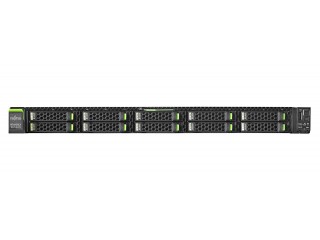

Fujitsu Primergy RX2530 M1 Rack Mount Server

Part No.	RX2530M1
Manufacturer	Fujitsu
End of Life?	No
Preceeded By	RX200 S8
Rack Units	1U
Height	43
Width	483
Depth	770.7
Weight [Kg]	16.00
Specification	CB; RoHS (Substance limitations in accordance with global RoHS regulations); WEEE (Waste electrical and electronical equipment)
CPU Socket(s)	1 - 2 x Intel® Xeon® processor E5-2600 v3 product family-based platform
Compatible CPU(s)	Xeon® E5-2603v3 (6C/6T, 1.60GHz, 15MB, Turbo: No, 6.4GT/s, 1,600MHz, 85W, AVX 1.30GHz); Xeon® E5-2609v3 (6C/6T, 1.90GHz, 15MB, Turbo: No, 6.4GT/s, 1,600MHz, 85W, AVX 1.90GHz); Xeon® E5-2620v3 (6C/12T, 2.40GHz, 15MB, Turbo: 2.60GHz, 8.0GT/s, 1,866MHz, 85W, AVX 2.10GHz, AVX Turbo 2.60GHz); Xeon® E5-2623v3 (4C/8T, 3.00GHz, 10MB, Turbo: 3.30GHz, 8.0GT/s, 1,866MHz, 105W, AVX 2.70GHz, AVX Turbo 3.30GHz); Xeon® E5-2630Lv3 (8C/16T, 1.80GHz, 20MB, Turbo: 2.10GHz, 8.0GT/s, 1,866MHz, 55W, AVX 1.50GHz, AVX Turbo 2.10GHz); Xeon® E5-2630v3 (8C/16T, 2.40GHz, 20MB, Turbo: 2.60GHz, 8.0GT/s, 1,866MHz, 85W, AVX 2.10GHz, AVX Turbo 2.60GHz); Xeon® E5-2637v3 (4C/8T, 3.50GHz, 15MB, Turbo: 3.60GHz, 9.6GT/s, 2,133MHz, 135W, AVX 3.20GHz, AVX Turbo 3.50GHz); Xeon® E5-2640v3 (8C/16T, 2.60GHz, 20MB, Turbo: 2.80GHz, 8.0GT/s, 1,866MHz, 90W, AVX 2.20GHz, AVX Turbo 2.80GHz); Xeon® E5-2643v3 (6C/12T, 3.40GHz, 20MB, Turbo: 3.60GHz, 9.6GT/s, 2,133MHz, 135W, AVX 2.80GHz, AVX Turbo 3.40GHz); Xeon® E5-2650Lv3 (12C/24T, 1.80GHz, 30MB, Turbo: 2.10GHz, 9.6GT/s, 2,133MHz, 65W, AVX 1.50GHz, AVX Turbo 2.10GHz); Xeon® E5-2650v3 (10C/20T, 2.30GHz, 25MB, Turbo: 2.60GHz, 9.6GT/s, 2,133MHz, 105W, AVX 2.00GHz, AVX Turbo 2.60GHz); Xeon® E5-2660v3 (10C/20T, 2.60GHz, 25MB, Turbo: 2.90GHz, 9.6GT/s, 2,133MHz, 105W, AVX 2.20GHz, AVX Turbo 2.90GHz); Xeon® E5-2667v3 (8C/16T, 3.20GHz, 20MB, Turbo: 3.40GHz, 9.6GT/s, 2,133MHz, 135W, AVX 2.70GHz, AVX Turbo 3.30GHz); Xeon® E5-2670v3 (12C/24T, 2.30GHz, 30MB, Turbo: 2.60GHz, 9.6GT/s, 2,133MHz, 120W, AVX 2.00GHz, AVX Turbo 2.60GHz); Xeon® E5-2680v3 (12C/24T, 2.50GHz, 30MB, Turbo: 2.90GHz, 9.6GT/s, 2,133MHz, 120W, AVX 2.10GHz, AVX Turbo 2.80GHz); Xeon® E5-2683v3 (14C/28T, 2.00GHz, 35MB, Turbo: 2.50GHz, 9.6GT/s, 2,133MHz, 120W, AVX 1.70GHz, AVX Turbo 2.50GHz); Xeon® E5-2690v3 (12C/24T, 2.60GHz, 30MB, Turbo: 3.10GHz, 9.6GT/s, 2,133MHz, 135W, AVX Base2.30GHz, AVX Turbo 3.00GHz); Xeon® E5-2695v3 (14C/28T, 2.30GHz, 35MB, Turbo: 2.80GHz, 9.6GT/s, 2,133MHz, 120W, AVX 1.90GHz, AVX Turbo 2.60GHz); Xeon® E5-2697v3 (14C/28T, 2.60GHz, 35MB, Turbo: 3.10GHz, 9.6GT/s, 2,133MHz, 145W, AVX 2.20GHz, AVX Turbo 2.90GHz); Xeon® E5-2698v3 (16C/32T, 2.30GHz, 40MB, Turbo: 2.80GHz, 9.6GT/s, 2,133MHz, 135W, AVX 1.90GHz, AVX Turbo 2.50GHz); Xeon® E5-2699v3 (18C/36T, 2.30GHz, 45MB, Turbo: 2.80GHz, 9.6GT/s, 2,133MHz, 145W, AVX 1.90GHz, AVX Turbo 2.60GHz);
Max CPU Clk Spd	Up to 3.5 GHz (3.6 GHz Turbo)
CPU Cache	Up to 45MB per CPU
Max # Thread(s)	Up to 36 per CPU
Max # Core(s)	Up to 18 per CPU
Memory Slot(s)	24 (12 DIMMs per CPU, 4 channels with 3 slots per channel)
Memory Capacity	768 - 1,536 GB
Memory Expansion	8 GB (1 module(s) 8 GB) DDR4, registered, ECC, 2,133 MHz, PC4-2133R, DIMM, 1Rx4 8 GB (1 module(s) 8 GB) DDR4, registered, ECC, 2,133 MHz, PC4-2133R, DIMM, 2Rx8 16 GB (1 module(s) 16 GB) DDR4, registered, ECC, 2,133 MHz, PC4-2133R, DIMM, 2Rx4 32 GB (1 module(s) 32 GB) DDR4, registered, ECC, 2,133 MHz, PC4-2133P, LRDIMM, 4Rx4 32 GB (1 module(s) 32 GB) DDR4, registered, ECC, 2,133 MHz, PC4-2133R, DIMM, 2Rx4 64 GB (1 module(s) 64 GB) DDR4, registered, ECC, 2,133 MHz, PC4-2133P, LRDIMM, 4Rx
Drive Bays	up to 8 x 2.5-inch, 10 x 2.5-inch or 4 x 3.5-inch baseunit
HDD Suitability	SAS, SAS SSD, SATA SSD, PCIe-SSD, DOM SATA; SATA
SATA Controller	Intel® C612
RAID Controller	RAID Ctrl., SAS/SATA 12 Gbit/s, Fujitsu PRAID CP400i, 8 ports int. RAID level: 0, 1, 1E, 10, 5, 50 No BBU support
RAID Options	RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, Fujitsu PRAID EP420i, 8 ports int.; RAID 5/6 Ctrl., SAS/SATA 12 Gbit/s, Fujitsu PRAID EP400i, 8 ports int.
Supported OS	Microsoft® Hyper-V Server 2012 R2; Microsoft® Windows Server® 2012 R2 Datacenter; Microsoft® Windows Server® 2012 R2 Standard; Microsoft® Windows Server® 2012 R2 Essentials; Microsoft® Windows Storage Server 2012 R2 Standard; Microsoft® Hyper-V Server 2012; Microsoft® Windows Server® 2012 Datacenter; Microsoft® Windows Server® 2012 Standard; Microsoft® Windows Server® 2012 Essentials; Microsoft® Windows Storage Server 2012 Standard; Microsoft® Windows Server® 2008 R2 Datacenter; Microsoft® Windows Server® 2008 R2 Enterprise; Microsoft® Windows Server® 2008 R2 Standard; VMware vSphere™ 6.0; VMware vSphere™ 5.5; VMware vSphere™ 5.1 Embedded; VMware vSphere™ 5.1; SUSE® Linux Enterprise Server 12; SUSE® Linux Enterprise Server 11; Red Hat® Enterprise Linux 7; Red Hat® Enterprise Linux 6; Citrix® XenServer®; Oracle® Linux 7; Oracle® Linux 6; Oracle® VM 3
USB Port(s)	1 x USB 2.0 (1x rear) USB 3.0 ports 5 x USB 3.0 (2x front, 2x rear, 1x internal)
PCI Slot(s)	2 x Low profile PCI-Express 3.0 x16 2 x Low profile (2nd processor required for slot 4); 1x16 if fh slot selected
LAN Controller(s)	DynamicLoM based on Emulex XE100 series. 2x 1Gbit/s Dynamic LoM#4x 1Gbit/s Dynamic LoM#2x 10Gbit/s
Graphics / GPU	2 x VGA (thereof 1x front optional)
Standard	3 years Onsite warranty
Optional	24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact us.
