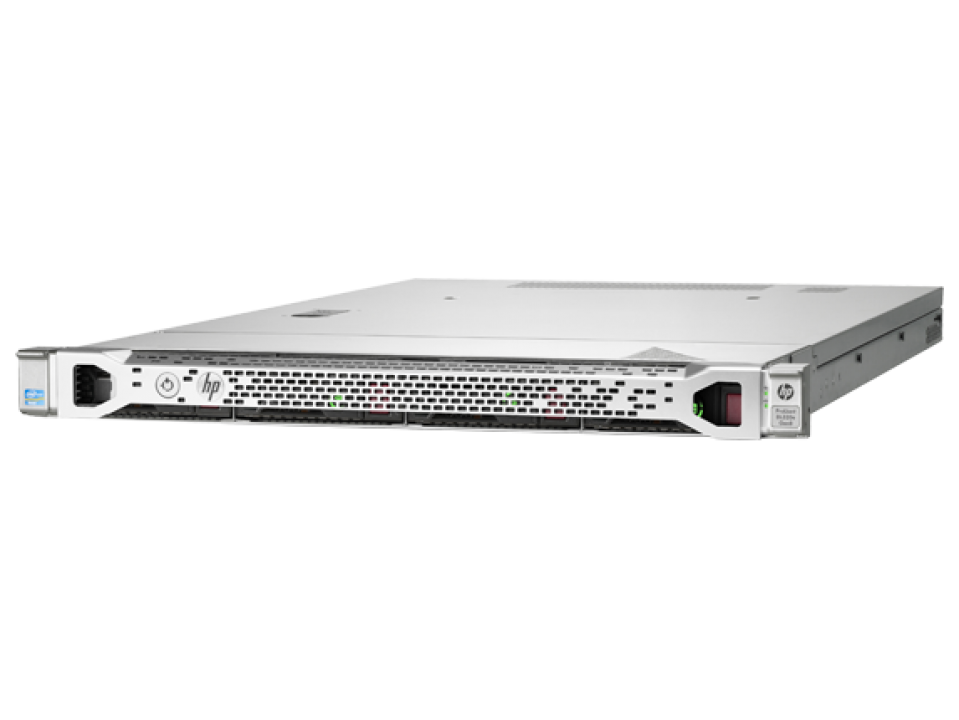

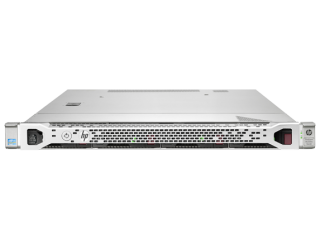

HP ProLiant DL320e Gen8 Server
A single-socket 1U rack server, delivers affordable and yet powerful performance
[675420-001]
HP ProLiant DL320e Gen8, a single-socket 1U rack server, delivers affordable and yet powerful performance while providing essential features for varied computing needs. It is ideal for enterprise data centers and service providers requiring a low-cost server to run single dedicated/IT applications, web and edge-of-network applications.
Availability: In stock
Details
Part No. | 675420-001 |
---|---|
Manufacturer | HP |
End of Life? | No |
Rack Units | 1 RU |
Height | 43.2 |
Width | 434.6 |
Depth | 699 |
Weight [Kg] | 16.80 |
CPU Socket(s) | 1 |
Compatible CPU(s) | Intel® Xeon® E3-1200v2 product family; Intel® Core™ i3; Intel® Pentium® |
Max CPU Clk Spd | Up to 3.7 GHz |
CPU Cache | 3–8 MB |
Max # Core(s) | 2–4 |
Memory Slot(s) | 4 DIMMs (2 Channels/ 2 DIMMs per channel) |
Memory Capacity | 32GB (4 x 8GB@1600MHz) |
Memory Expansion | Standard (Entry Model) 2GB (1 x 2GB) UDIMM PC3-12800E (1600MHz) Standard (Base Models) 4GB (1 x 4GB) UDIMM PC3-12800E (1600MHz) Standard (Performance Models) 8GB (2 x 4GB) UDIMM PC3-12800E (1600MHz) |
Drive Bays | 8 SFF drive bays or 4 LFF Non hot plug/Hot plug |
Capacity | Up to 16 TB |
HDD Suitability | LFF or SFF SAS/SATA/SSD |
RAID Controller | HP Dynamic Smart Array B120i Controller (Non-Hot Plug) |
RAID Options | Base Models (Hot plug) HP Dynamic Smart Array B120i Controller; Performance Models (Hot plug) HP Smart Array P222/512MB FBWC controller |
Supported OS | Microsoft Windows Server; Red Hat Enterprise Linux (RHEL); SUSE Linux Enterprise Server (SLES); VMware |
USB Port(s) | 7 total: 4 rear, 2 front, 1 internal (Optional) |
PCI Slot(s) | 1 PCIe 2.0 expansion slot; 1 PCIe 3.0 I/O slot for additional communications and storage expansion (depends on processor) |
Serial Ports | 1 |
LAN Controller(s) | HP Ethernet 1Gb 2-port 330i Adapter |
Bandwidth | 1 Gbps |
Graphics / GPU | 1 Rear standard video |
Standard | This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for s |
Optional | Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details. |
