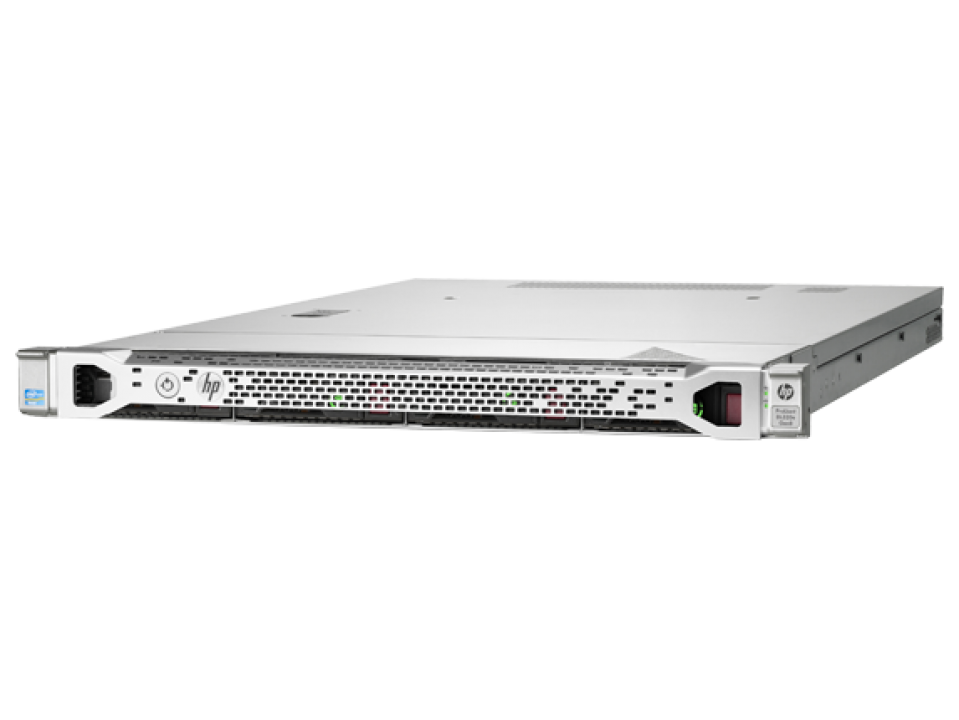

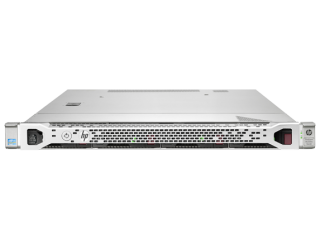

HP ProLiant DL320e Gen8 Server

A single-socket 1U rack server, delivers affordable and yet powerful performance


More Image(s)

HP ProLiant DL320e Gen8, a single-socket 1U rack server, delivers affordable and yet powerful performance while providing essential features for varied computing needs. It is ideal for enterprise data centers and service providers requiring a low-cost server to run single dedicated/IT applications, web and edge-of-network applications.
Availability: In stock

For details on how to purchase the HP ProLiant DL320e Gen8 Server, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


Part No. 675420-001
Manufacturer HP
End of Life? No
Rack Units 1 RU
Height 43.2
Width 434.6
Depth 699
Weight [Kg] 16.80
CPU Socket(s) 1
Compatible CPU(s) Intel® Xeon® E3-1200v2 product family; Intel® Core™ i3; Intel® Pentium®
Max CPU Clk Spd Up to 3.7 GHz
CPU Cache 3–8 MB
Max # Core(s) 2–4
Memory Slot(s) 4 DIMMs (2 Channels/ 2 DIMMs per channel)
Memory Capacity 32GB (4 x 8GB@1600MHz)
Memory Expansion Standard (Entry Model) 2GB (1 x 2GB) UDIMM PC3-12800E (1600MHz)
Standard (Base Models) 4GB (1 x 4GB) UDIMM PC3-12800E (1600MHz)
Standard (Performance Models) 8GB (2 x 4GB) UDIMM PC3-12800E (1600MHz)
Drive Bays 8 SFF drive bays or 4 LFF Non hot plug/Hot plug
Capacity Up to 16 TB
RAID Controller HP Dynamic Smart Array B120i Controller (Non-Hot Plug)
RAID Options Base Models (Hot plug) HP Dynamic Smart Array B120i Controller;
Performance Models (Hot plug) HP Smart Array P222/512MB FBWC controller
Supported OS Microsoft Windows Server;
Red Hat Enterprise Linux (RHEL);
SUSE Linux Enterprise Server (SLES);
USB Port(s) 7 total: 4 rear, 2 front, 1 internal (Optional)
PCI Slot(s) 1 PCIe 2.0 expansion slot;
1 PCIe 3.0 I/O slot for additional communications and storage expansion (depends on processor)
Serial Ports 1
LAN Controller(s) HP Ethernet 1Gb 2-port 330i Adapter
Bandwidth 1 Gbps
Graphics / GPU 1 Rear standard video
Standard This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for s
Optional Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
675422-001; 675421-001
