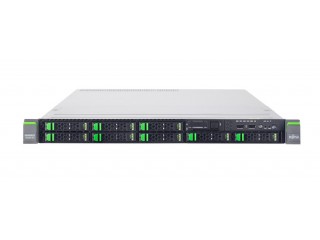

Fujitsu PRIMERGY RX200 S7 Rack Mount Server
Maximum productivity in a 1 U, dual socket housing.
[rx200s7]
More Image(s)
The Fujitsu PRIMERGY RX200 S7 is a rack server that provides high performance, expandability and energy efficiency in 1U space saving housing. Thus, the PRIMERGY RX200 S7 is ideal for virtualization and cloud, small databases as well as for high performance computing thanks to the top performance of the new Intel® Xeon® E5 product family. Moreover, the RX200 S7 delivers a great expandability, by supporting up to 768 GB of memory, eight hard disk drives and costsaving Modular LAN options to ensure future requirements are met and budgets are saved. Thanks to the highly efficient power supply units with an efficiency rate of 94% and the new power management this will result in lower operational costs.
Availability: In stock
Details
The PRIMERGY RX Rack Server family is the perfect platform to form dynamic infrastructures for your business processes today and in the coming decade. You will thus benefit several times over from our recognized experience in optimized data center technology and our innovative strength in developing energy-efficient and cost/ performance-optimized rack systems for universal use. PRIMERGY rack servers, built upon industry standards, focus from a functional viewpoint on core features: energy efficiency, reliability, optimized for virtualization, ease of operation and maintenance, flexibility for your future. And thus they notably meet your requirements for outstanding cost efficiency. Optimal operating costs and long-term usability comply with the IT quality required by your customers. Our responsibility goes way beyond the hardware as our tailor-made service packages mean that you can rely on the best support for your IT during its whole lifecycle.
Meet today’s demand and be prepared for future requirements
- Intel Xeon E5-2600 product family with up to 8 core processors and Turbo Boost 2.0
- Increased performance of up to 80% compared to the previous generation
- Optimized for business applications, cloud and virtualization
Lifecycle investment protection
- Expanded scalability of up to 24 DIMMs with 768 GB memory, up to 8 hard disk drives and 4 PCIe slots Gen3
- New modular concept for the base unit as well as a choice for LAN controller, RAID controller and power supplies.
- Upgrade kits for hard disk drives and CPU available.
- Maximum productivity and scalability in space saving 1U housing to meet future demand.
- Individual and cost-saving configuration of the server according to the need of today with upgrade option to meet the demand of tomorrow.
- Upgrade kits save budget as the system can be upgraded when the company grows and thus protect the investment
Cost efficient operations
- Simplified power management with profiles for ‘minimum power’ and ‘low-noise’.
- 2 hot-plug PSU with 94% efficiency.
- Fujitsu ServerView Suite offers tools for installation and deployment, permanent status monitoring and control. A wide range of integration packs allow a seamless and easy integration in widelyused enterprise management systems.
- Simplified and comprehensive power management that results with the high efficient power supplies in significant savings.
- Fujitsu ServerView Suite provides all the functions for fail-safe, flexible and automated 24x7 server operations and improves enduser productivity via intelligent and innovative system management solutions.
| Part No. | rx200s7 |
|---|---|
| Manufacturer | Fujitsu |
| Rack Units | 1 U |
| Height | 43 |
| Width | 482 |
| Depth | 762 |
| Weight [Kg] | 18.00 |
| CPU Socket(s) | 1 or 2 Intel® Xeon® E5-2600 |
| Compatible CPU(s) | Intel® Xeon® processor E5-2603 (4C/4T, 1.80 GHz); Intel® Xeon® processor E5-2609 (4C/4T, 2.40 GHz); Intel® Xeon® processor E5-2620 (6C/12T, 2.00 GHz); Intel® Xeon® processor E5-2630 (6C/12T, 2.30 GHz); Intel® Xeon® processor E5-2630L (6C/12T, 2.00 GHz); Intel® Xeon® processor E5-2637 (2C/4T, 3.00 GHz); Intel® Xeon® processor E5-2640 (6C/12T, 2.50 GHz); Intel® Xeon® processor E5-2643 (4C/8T, 3.30 GHz); Intel® Xeon® processor E5-2650 (8C/16T, 2.00 GHz); Intel® Xeon® processor E5-2650L (8C/16T, 1.80 GHz); Intel® Xeon® processor E5-2660 (8C/16T, 2.20 GHz); Intel® Xeon® processor E5-2665 (8C/16T, 2.40 GHz); Intel® Xeon® processor E5-2667 (6C/12T, 2.90 GHz); Intel® Xeon® processor E5-2670 (8C/16T, 2.60 GHz); Intel® Xeon® processor E5-2680 (8C/16T, 2.70 GHz); Intel® Xeon® processor E5-2690 (8C/16T, 2.90 GHz) |
| Max CPU Clk Spd | Up to 3.30 GHz |
| CPU Cache | 5, 10, 15 or 20 MB per CPU |
| Max # Thread(s) | 4, 8, 12 or 16 per CPU |
| Max # Core(s) | 2, 4, 6 or 8 per CPU |
| Memory Slot(s) | 24 |
| Memory Capacity | 768 GB |
| Drive Bays | 4 x 2.5-inch hot-plug SAS/SATA; or 8 x 2.5-inch hot-plug SAS/SATA |
| Capacity | Up to 8.0 TB |
| HDD Suitability | SSD SAS, 6 Gb/s, 400 GB, SLC, hot-plug, 2.5-inch, enterprise; SSD SAS, 6 Gb/s, 200 GB, SLC, hot-plug, 2.5-inch, enterprise; SSD SAS, 6 Gb/s, 100 GB, SLC, hot-plug, 2.5-inch, enterprise; PCIe SSD, 640 GB, MLC, Flash drive; PCIe SSD, 320 GB, MLC, Flash drive; HDD SATA, 6 Gb/s, 500 GB, 7200 rpm, hot-plug, 2.5-inch, business critical; HDD SATA, 6 Gb/s, 250 GB, 7200 rpm, hot-plug, 2.5-inch, business critical; HDD SATA, 6 Gb/s, 1 TB, 7200 rpm, hot-plug, 2.5-inch, business critical; HDD SAS, 6 Gb/s, 900 GB, 10000 rpm, hot-plug, 2.5-inch, enterprise; HDD SAS, 6 Gb/s, 600 GB, 10000 rpm, hot-plug, 2.5-inch, enterprise; HDD SAS, 6 Gb/s, 450 GB, 10000 rpm, hot-plug, 2.5-inch, enterprise; HDD SAS, 6 Gb/s, 300 GB, 15000 rpm, hot-plug, 2.5-inch, enterprise; HDD SAS, 6 Gb/s, 300 GB, 10000 rpm, hot-plug, 2.5-inch, enterprise; HDD SAS, 6 Gb/s, 146 GB, 15000 rpm, hot-plug, 2.5-inch, enterprise; HDD SAS, 6 Gb/s, 73 GB, 15000 rpm, hot-plug, 2.5-inch, enterprise; |
| SATA Controller | Intel® C600, 1 x SATA channel for ODD |
| RAID Controller | 4 port for internal 3G SATA and SAS (as upgrade option “Patsburg B”) for HDDs with RAID 0/1/10 (Intel C600) |
| Supported OS | Microsoft® Hyper-V™ Server 2008 R2; Microsoft® Windows Server® 2008 R2 Datacenter; Microsoft® Windows Server® 2008 R2 Enterprise; Microsoft® Windows Server® 2008 R2 Standard; Microsoft® Windows® Web Server 2008 R2; Microsoft® Windows HPC Server® 2008 R2 Suite; Microsoft® Windows® Small Business Server 2011 Premium Add-On; Microsoft® Windows® Small Business Server Standard 2011; Microsoft® Windows® Server 2008 Datacenter; Microsoft® Windows® Server 2008 Enterprise; Microsoft® Windows® Server 2008 Standard; Microsoft® Windows® Web Server 2008; VMware vSphere™ 5.0 Embedded; VMware vSphere™ 5.0; VMware vSphere™ 4.1; VMware vSphere™ 4.1 Embedded; VMware vSphere™ 4.1 Installable; Novell® SUSE Linux Enterprise Server 11; Novell® SUSE Linux Enterprise Server 10; Novell® SUSE Linux Enterprise Server 10 with XEN; Red Hat® Enterprise Linux 6; Red Hat® Enterprise Linux 5; Red Hat® Enterprise Linux 5 with XEN; Citrix® XenServer® |
| USB Port(s) | 6 x USB 2.0 (2x front, 3x rear, 1x uSSD) |
| PCI Slot(s) | PCI-Express 3.0 x8 3 x Low profile PCI-Express 3.0 x16 1 x Low profile |
| LAN Socket(s) | 2 x Gbit/s Ethernet (RJ45) plus 2x1 Gbit/s as default Modular integrated on-board LAN with upgrade options to 4x 1 Gbit/s (RJ45) or 2x 10 Gbit/s (SFP+) |
| LAN Controller(s) | Intel® Ethernet Controller I350, 2 x 10/100/1000 Mbit/s Ethernet (I/O acceleration), In addition 2x1 Gbit/s as default Modular integrated on-board LAN with upgrade options to 4x 1 Gbit/s or 2x 10 Gbit/s PXE-Boot via LAN from PXE server, iSCSI boot (also d |
| Bandwidth | 1 or 10 GbE |
| Graphics / GPU | 1 x VGA (15-pin) |
| Standard | 3 years, On-site Service (depending on country) |
| Optional | 7x24, Onsite Response Time: 4h - depending on location. |
