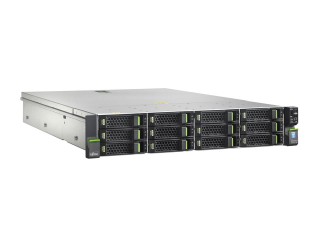

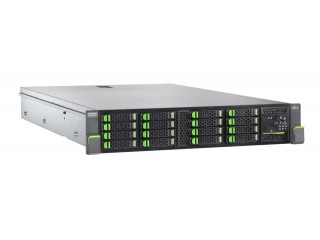

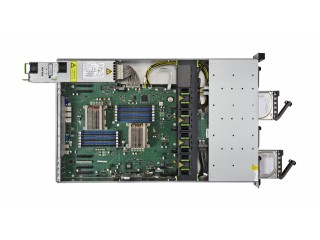

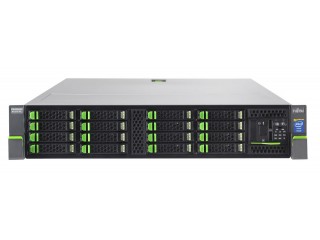

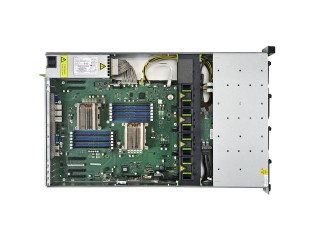

Fujitsu PRIMERGY RX2520 M1 Dual Socket 2U Rack Server

Scalable rackserver for essential business applications


More Image(s)

The Fujitsu PRIMERGY RX2520 M1 is an efficient and scalable platform for essential business applications. As a dual socket rack server it features the latest Intel® Xeon® processor E5-2400 v2 product family with up to 192 GB RAM. The PRIMERGY RX2520 delivers an especially well balanced price/performance ratio.
Availability: In stock

For details on how to purchase the Fujitsu PRIMERGY RX2520 M1 Dual Socket 2U Rack Server, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


Part No. S26361-K1480-V401
Manufacturer Fujitsu
End of Life? No
Preceeded By RX300 S8
Rack Units 2 RU
Height 86.9
Width 482.6
Depth 770
Weight [Kg] 25.00
Specification CB; RoHS (Restriction of hazardous substances); WEEE (Waste electrical and electronical equipment); CE Class A
CPU Socket(s) 1-2 Intel® Xeon® processor E5-2400 v2 product family
Compatible CPU(s) Xeon® E5-2403v2 (4C/4T, 1.80GHz, 10MB, 6.4GT/s, 1333MHz, 80W);
Xeon® E5-2407v2 (4C/4T, 2.40GHz, 10MB, 6.4GT/s, 1333MHz, 80W);
Xeon® E5-2420v2 (6C/12T, 2.20GHz, 15MB, 7.2GT/s, 1600MHz, 80W);
Xeon® E5-2430Lv2 (6C/12T, 2.40GHz, 15MB, 7.2GT/s, 1600MHz, 60W);
Xeon® E5-2430v2 (6C/12T, 2.50GHz, 15MB, 7.2GT/s, 1600MHz, 80W);
Xeon® E5-2440v2 (8C/16T, 1.90GHz, 20MB, 7.2GT/s, 1600MHz, 95W);
Xeon® E5-2450Lv2 (10C/20T, 1.70GHz, 25MB, 8.0GT/s, 1600MHz, 60W);
Xeon® E5-2450v2 (8C/16T, 2.50GHz, 20MB, 8.0GT/s, 1600MHz, 95W);
Xeon® E5-2470v2 (10C/20T, 2.40GHz, 25MB, 8.0GT/s, 1600MHz, 95W)
Max CPU Clk Spd Up to 2.5 GHz
CPU Cache Up to 25 MB
Max # Thread(s) Up to 20 Threads
Max # Core(s) Up to 10 Cores / CPU
Memory Slot(s) 12 (6 DIMMs per CPU, 3 channels with 2 slots per channel)
Memory Capacity 2 GB - 192 GB
Memory Expansion Supports DDR3 800 / 1066 / 1333 / 1600 RDIMM;
max. 6 memory modules/CPU with single or dual-rank RDIMM or single, dual-rank or quad-rank Load-Reduced (LR) DIMM.;
Performance Mode with identical modules in all three channels (2 modules per bank).;
Support of 32GB and 64GB LR-DIMMs on special release.
Drive Bays 2.5-inch base unit (max. 16 x 2.5) or 3.5-inch base unit (max. 12 x 3.5)
Capacity Up to 4.8 TB
HDD Suitability SAS, SATA, SSD
SATA Controller Intel® C600, 1 x SATA channel for ODD
RAID Controller 4 port for internal 3 Gbit/s SATA and 3 Gbit/s SAS (as upgrade option with SAS enabling key) for HDDs with RAID 0/1/10 (Intel C600)
Supported OS Microsoft Hyper-V; Windows Server 2008, 2012, VMware vSphere; SUSE Linux; Red Hat; Citrix
USB Port(s) 9
PCI Slot(s) 6 x Low profile PCI-Express 3.0 x8 1 x Low profile PCI-Express 2.0 x4 (mech. x8)
Serial Ports 1 x serial RS-232-C, usable for iRMC or system or shared
LAN Socket(s) 2 x Gbit/s Ethernet (RJ45) with upgrade options for additional 2x1 Gbit/s (RJ45), 4x 1 Gbit/s (RJ45) or 2x 10 Gbit/s (SFP+)
Graphics / GPU 2 x VGA (thereof 1x front optional)
Standard 3 years Onsite Service (depending on country)
Optional 24x7, Onsite Response Time: 4h - For locations outside of EMEA please contact us.
Fujitsu, RX2520 M1, S26361-K1480-V401
