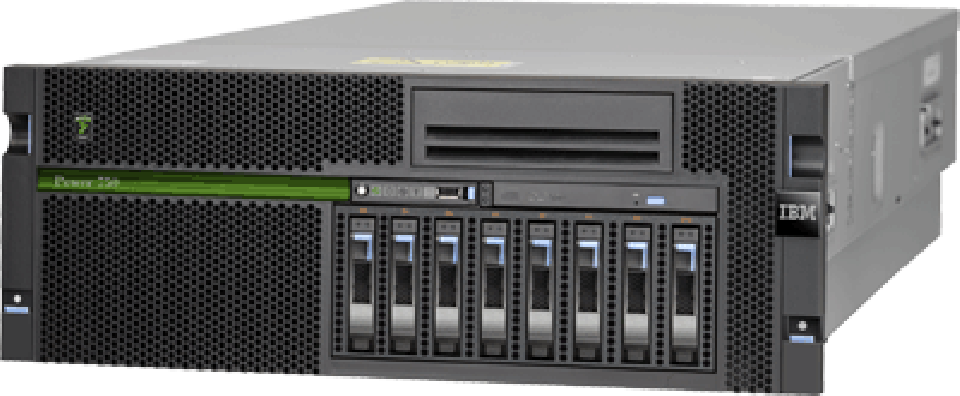

IBM Power 750 Express Rack Mount Server
High performance, energy-efficient platform for serverconsolidation, multiapplication and database serving
[power750]The Power 750 Express is a one- to four-socket server that supports up to 32 cores with outstanding energy efficiency and diagnostic features in a 4U (EIA Units) package. The Power 750 is an ENERGY STAR®-qualified server designed with features to help clients become more energy efficient. IBM Systems Director Active Energy Manager™ exploits EnergyScale™ technology, enabling Intelligent Energy management features to dramatically and dynamically conserve power. These Intelligent Energy features enable the POWER7 processor to operate at a higher frequency if environmental conditions permit, for increased performance and performance per watt; or alternatively operate at a reduced frequency if user settings permit, for significant energy savings.The Power 750 also implements Light Path diagnostics, which provide an obvious and intuitive means to positively identify failing components.
Details
Whether you need a reliable and efficient servercon solidation platform or a high-performing multi applicationor database server, the Power 750 Express server is an ENERGY STAR-qualified server that can fulfill your requirements while using technology that provides innovation that sets your business apart from the competition. The Power 750 Express offers outstanding performance, industrial-strength PowerVM virtualization and a choice of AIX, IBMi or Linux operating systems.
Leadership POWER7 performance
The leadership performance of the POWER7 processor makes it possible for applications to run faster with fewer processors, resulting in lower per core software licensing costs. In addition, a single system can now run more applications and reduce the number of required servers lowering infrastructure costs.
PowerVM virtualization
The IBMPower 750 Express offers tremendous configurationflexibility to meet the most demanding capacity and growthrequirements by supporting up to 32 POWER7 processor coresand 512 GB of memory. Take advantage of this scalability and capacity by leveraging our industrial strength PowerVM technology to fully utilize the capability of the Power 750. PowerVM allows any individual LPAR to access the maximum amount of memory and CPU cores that are available on theserver. PowerVM offers this capability to dynamically adjust system resources to partitions based on workload demands, enabling a dynamic infrastructure that dramatically reduces server sprawl via massive consolidation of applications andservers. In addition, optional components, in PowerVM Editions, are designed to provide advanced virtualization technologies resulting in efficiencies in resource utilization and cost savings.
Part No. | power750 |
---|---|
Manufacturer | IBM |
Rack Units | 4 U |
Height | 175 |
Width | 440 |
Depth | 730 |
Weight [Kg] | 54.40 |
CPU Socket(s) | 1 to 4 |
Compatible CPU(s) | 4-core 3.7 GHz or 6-core 3.7 GHz or 8-core 3.2 GHz or 8-core 3.6 GHz |
Max CPU Clk Spd | Up to 3.7 GHz |
CPU Cache | Level 2 (L2) cache 256 KB per core Level 3 (L3) cache 4 MB per core |
Max # Core(s) | 4, 6 or 8 cores per CPU |
Memory Slot(s) | DDR3-RDIMM |
Memory Capacity | 512 GB |
Drive Bays | 8x 2.5" SFF Drive Bays |
Capacity | Up to 2.4 TB |
HDD Suitability | SAS or SSD |
RAID Options | One controller for SAS DASD/SSD and DVD-RAM Optional protected 175MB cache |
Supported OS | AIX |
PCI Slot(s) | Two PCI-X 2.0; Three PCI Express 8x |
LAN Socket(s) | Four Ethernet 10/100/1000 Mbps ports (or) Two 10 Gigabit Ethernet ports |
Standard | 9 hours per day, Monday through Friday (excluding holidays), next business day for one year at no additional cost;on site for selected components; CRU (customer-replaceable unit) for all other units (varies by country). |
Optional | Warranty service upgrades and maintenance are available. |
