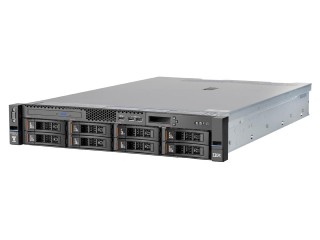

IBM System x3650 M5 Server

Commanding performance and versatility with leading-edge reliability and security for enterprise solutions


More Image(s)

With the powerful, versatile new 2U two-socket IBM System x3650 M5 rack server, you can run even more workloads, all day every day and gain faster business insights. Integrated with up to two Intel® E5-2600 v3 series central processing units (CPUs) and leading-edge two- socket storage capacity, the x3650 M5 fast forwards your business.
Availability: In stock

For details on how to purchase the IBM System x3650 M5 Server, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


Leverage leading- edge security and reliability

The x3650 M5 integrates leading-edge security and reliability. System x Trusted Platform Assurance, an exclusive set of System x features and practices, establishes a foolproof security foundation for your workloads. You can also deploy self-encrypting drives (SEDs) using the optional IBM Security Key Lifecycle Manager (SKLM). System x servers achieved the highest reliability of any x86 server.1 Diagnostic tools such as Predictive Failure Analysis (PFA) and the new NextGen Diagnostic panel facilitate easy serviceability and reduced downtime and costs.

Innovative energy efficiency and performance

Built on an innovative architecture, the x3650 M5 incorporates energy smart features for cost savings. Dual fan zones and extended operating temperature ranges maintain advanced cooling and efficiency. 80 PLUS Titanium power supplies can deliver up to 96 percent efficiency. With twice the memory, up to 131 percent greater performance2 and 50 percent more cores and cache than the previous generation, the x3650 M5 lets your workloads fly. End-to- end (E2E) 12 gigabits per second (Gbps)redundant array of independent disks (RAID) support with up to four RAID adapters adds enhanced performance and data protection.

Part No. ibmx3650m5
Manufacturer IBM
End of Life? No
Preceeded By IBM System x3650 M4 Server
Rack Units 2
Weight [Kg] 23.50
CPU Socket(s) Up to two Intel Xeon® E5- 2600 v3 series processors
CPU Cache Up to 45 MB per Socket
Max # Thread(s) Up to 36 per Socket
Max # Core(s) Up to 18 per Socket
Memory Capacity Up to 1.5 terabytes (TB) of memory with SK Hynix 64 gigabyte (GB)* TruDDR4 Memory load- reduced dual inline memory module (LRDIMM); System supports registered dual inline memory module (RDIMM/LRDIMM)
Drive Bays Up to 24 front and 2 rear 2.5- inch hard disk drives (HDDs)/ solid state drive (SSDs); or up to 12 3.5- inch and 2 rear 3.5- inch HDDs + 2 rear 2.5- inch HDDs/ SSDs; or up to 8 3.5- inch HDDs and 2 rear 3.5- inch or 2.5- inch HDDs/ SSDs (model dependent)
Capacity Up to 86.4 TB
RAID Controller 12 Gbps dedicated slot for the first RAID; support for up to four RAID adapters
Supported OS Microsoft® Windows® Server, Red Hat Enterprise Linux®, SUSE Linux Enterprise Server, VMware vSphere - (Optional USB Key or SD Media Adapter)
USB Port(s) Up to 3 front (1 x USB 3.0, 2 x USB 2.0) and 4 back (2 x USB 3.0, 2 x USB 2.0) and 1 internal (USB 3.0) for hypervisor/ 1 front and 1 back
PCI Slot(s) 1 – 8 PCIe 3.0 slots (supports up to 2 x 300 W GPUs and up to 1 x ML2) and 1 dedicated RAID slot
LAN Socket(s) 4 × 1 gigabit Ethernet (GbE) (std.) and 1 x integrated management module (IMM); optional 10/ 40 GbE ML2 or peripheral component interconnect Express (PCIe) adapter; Trusted Platform Module (TPM) built- inV
Standard 3- year customer replaceable unit (CRU) and onsite limited warranty, next business day 09:00 to 17:00; upgrades available
