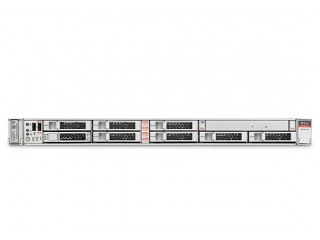

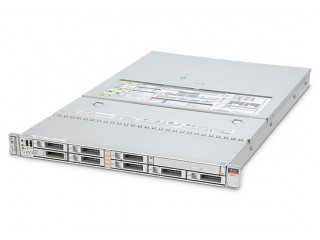

Oracle Sun Server X5-2

The latest generation of data center class reliable, industry leading server


More Image(s)

Oracle’s Sun Server X5-2 system is the most versatile two-socket server for clustered computing and virtualization, packing the optimal balance of computing power, memory capacity, and I/O capability.

Availability: In stock

For details on how to purchase the Oracle Sun Server X5-2 , please click the button below to send us your details and brief requirements. We can then quote you accordingly.


Part No. x5-2
Manufacturer Sun Oracle
End of Life? No
Preceeded By Sun Server X4-2
Rack Units 1
Height 42.6
Width 436.5
Depth 737.0
Weight [Kg] 18.00
EAN 101900
CPU Socket(s) 1–2 Intel Xeon E5-2600 v3
Compatible CPU(s) Intel Xeon E5-2699 v3 [18C];
Intel Xeon E5-2690 v3 [12C];
Intel Xeon E5-2660 v3 [10C];
Intel Xeon E5-2630 v3 [8C];
CPU Cache Level 1: 32 KB instruction and 32 KB data L1 cache per core;
Level 2: 256 KB shared data and instruction L2 cache per core;
Level 3: Up to 45 MB shared inclusive L3 cache per processor
Max # Thread(s) Up to 36 per Socket
Max # Core(s) Up to 18 per Socket
Memory Slot(s) 24 (12 per Socket)
Memory Capacity 768 GB
Memory Expansion RDIMM options: 8 GB at DDR4-2133 and 16 GB at DDR4-2133;
Load-reduced DIMM option: 32 GB at DDR4-2133
Supported OS
  • Oracle Solaris (preinstalled option)
  • Oracle Linux (preinstalled option)
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • Microsoft Windows Server
USB Port(s) Six 2.0 USB ports (two front, two rear, two internal)
PCI Slot(s) Four PCIe 3.0 slots: two x16 and two x8 (one internal) slots
LAN Socket(s) Four onboard auto-sensing 100/1000/10000 Base-T Ethernet ports;
RJ45 serial management port;
Graphics / GPU VGA 2D graphics controller embedded: 8MB
Resolution (Native) 1,600 x 1,200 x 16 bits @ 60 Hz via the rear HD15 VGA port (1,024 x 768 when viewed remotely via Oracle ILOM)
Standard The Oracle Server X5 - 2 system comes with a one - year warranty.
Optional Additional support services are available; please contact your account manager for more information.
