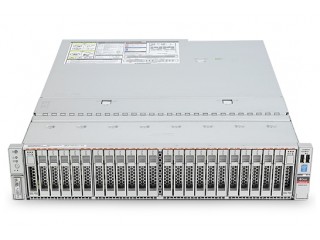

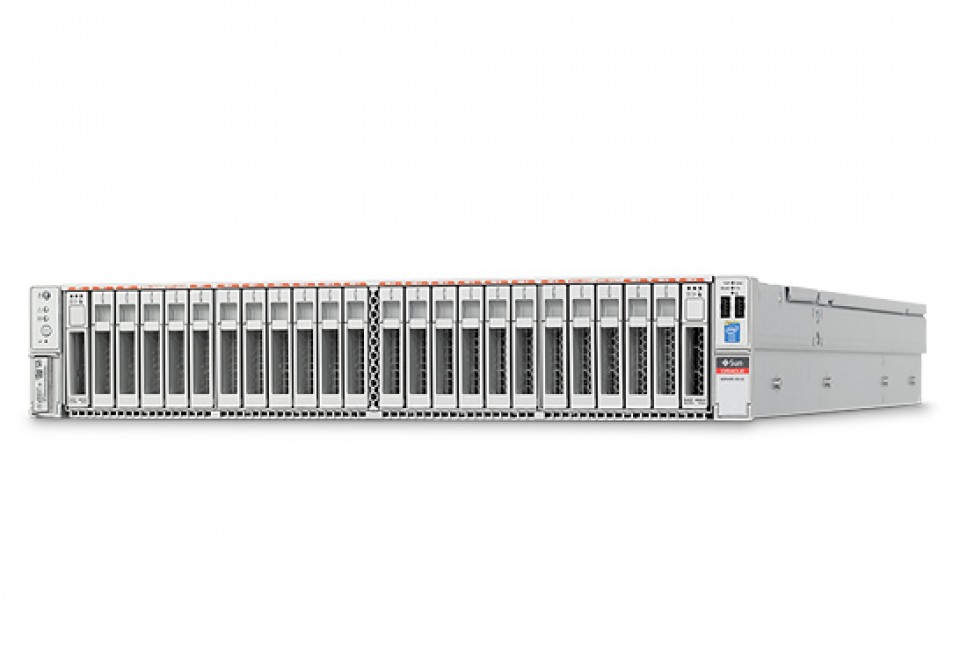

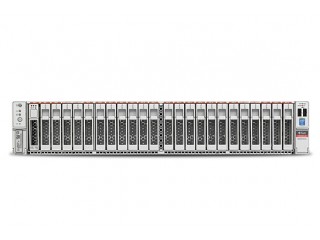

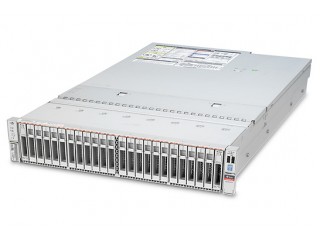

Oracle Sun Server X5-2L

The latest generation of data center class reliable, industry leading server


More Image(s)

Oracle’s Sun Server X5-2L system is the most versatile two-socket server for clustered computing and virtualization, packing the optimal balance of computing power, memory capacity, and I/O capability.

Availability: In stock

For details on how to purchase the Oracle Sun Server X5-2L , please click the button below to send us your details and brief requirements. We can then quote you accordingly.


Part No. x5-2l
Manufacturer Sun Oracle
End of Life? No
Preceeded By X4-2L
Rack Units 2
Height 87.6
Width 445
Depth 737.0
Weight [Kg] 28.50
CPU Socket(s) 1–2 Intel Xeon E5-2600 v3
Compatible CPU(s) Intel Xeon E5-2699 v3 [18C];
Intel Xeon E5-2690 v3 [12C];
Intel Xeon E5-2660 v3 [10C];
Intel Xeon E5-2630 v3 [8C];
CPU Cache Level 1: 32 KB instruction and 32 KB data L1 cache per core;
Level 2: 256 KB shared data and instruction L2 cache per core;
Level 3: Up to 45 MB shared inclusive L3 cache per processorUp to 45 MB per Socket
Max # Thread(s) Up to 36 per Socket
Max # Core(s) Up to 18 per Socket
Memory Slot(s) 24 (12 per Socket)
Memory Capacity 768 GB
Memory Expansion RDIMM options: 8 GB at DDR4-2133 and 16 GB at DDR4-2133;
Load-reduced DIMM option: 32 GB at DDR4-2133
Drive Bays Three disk chassis options:
  • Eight-disk chassis: eight 2.5-inch front hot-swappable disk bays and optional DVD-RW drive
  • Twelve-disk chassis: twelve 3.5-inch front hot-swappable disk bays and an additional two 2.5-inch rear hot-swappable disk bays
  • Twenty-four-disk chassis: twenty-four 2.5-inch front hot-swappable disk bays and an additional two 2.5-inch rear hot-swappable disk bays
The 2.5-inch disk bays can be populated with either HDDs, SSDs, or high-bandwidth flash;
The 3.5-inch disk bays can be populated only with HDDs;
12 Gbps RAID HBA supporting levels: 0, 1, 5, 6, 10, 50, 60, and JBOD with 1 GB of DDR3 onboard memory with flash memory backup via embedded internal SAS3 HBA PCIe Card

High-Bandwidth Flash

  • Uses Oracle-unique NVM Express (NVMe) design that allows for flash to be front accessible and hot swappable
  • Available in eight-disk and twenty-four-disk chassis only
  • Up to four small form factor NVMe drives (6.4 TB total capacity)
  • Four of the disk drive bays are predesignated as NVMe enabled
  • NVMe functionality requires an Oracle NVMe enabling kit that consumes one PCIe slot
Supported OS
  • Oracle Solaris (preinstalled option)
  • Oracle Linux (preinstalled option)
  • Red Hat Enterprise Linux
  • SUSE Linux Enterprise Server
  • Microsoft Windows Server
USB Port(s) Six 2.0 USB ports (two front, two rear, two internal)
PCI Slot(s) Six PCIe 3.0 slots: two x16 and four x8 (one internal) slots
LAN Socket(s) Four onboard auto-sensing 100/1000/10000 Base-T Ethernet ports;
Dedicated 10/100/1000 Base-T network management port
Graphics / GPU VGA 2D graphics controller embedded: 8MB
Resolution (Native) 1,600 x 1,200 x 16 bits @ 60 Hz via the rear HD15 VGA port (1,024 x 768 when viewed remotely via the Oracle ILOM)
Standard The Oracle Server X5-2L system comes with a one-year warranty.
