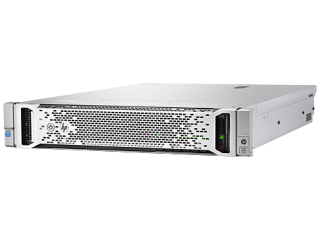

HP ProLiant DL380 Gen9 Server

Run everything from the most basic to mission critical applications, and can be deployed with confidence.


More Image(s)

What is your server bottleneck...storage, processing, expansion? The world’s best-selling server just got better. The HP ProLiant DL380 Gen9 Server delivers the latest performance and expandability in the HP 2P rack portfolio.

Availability: In stock

For details on how to purchase the HP ProLiant DL380 Gen9 Server, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


Part No. hpdl380gen9
Manufacturer HP
End of Life? No
Preceeded By HP DL380 Gen 8
Rack Units 2
Height 87.3
Width 445.5
Depth 730.2
Weight [Kg] 23.60
CPU Socket(s) Up to 2 Intel® E5-2600v3 Processor Family
Compatible CPU(s) Entry Processors - E5-2600v3 series Processors
Intel® Xeon® E5-2603v3 (1.6GHz/6C/15MB/85W) 719053-B21;
Intel® Xeon® E5-2609v3 (1.9GHz/6C/15MB/85W) 719052-B21;
Base Processors - E5-2600v3 series Processors
Intel® Xeon® E5-2620v3 (2.4GHz/6C/15MB/85W) 719051-B21;
Intel® Xeon® E5-2623v3 (3GHz/4C/10MB/105W) 779556-B21;
Intel® Xeon® E5-2630v3 (2.4GHz/8C/20MB/85W) 719050-B21;
Intel® Xeon® E5-2630Lv3 (1.8GHz/8C/20MB/55W) 719060-B21;
Intel® Xeon® E5-2637v3 (3.5GHz/4C/15MB/135W) 719058-B21;
Intel® Xeon® E5-2640v3 (2.6GHz/8C/20MB/90W) 719049-B21;
Performance Processors - E5-2600v3 series Processors
Intel® Xeon® E5-2643v3 (3.4GHz/6C/20MB/135W) 719057-B21;
Intel® Xeon® E5-2650v3 (2.3GHz/10C/25MB/105W) 719048-B21;
Intel® Xeon® E5-2650Lv3 (1.8GHz/12C/30MB/65W) 719059-B21;
Intel® Xeon® E5-2660v3 (2.6GHz/10C/25MB/105W) 762764-B21;
Intel® Xeon® E5-2667v3 (3.2GHz/8C/20MB/135W) 719056-B21;
Intel® Xeon® E5-2670v3 (2.3GHz/12C/30MB/120W) 719046-B21;
Intel® Xeon® E5-2680v3 (2.5GHz/12C/30MB/120W) 762766-B21;
Intel® Xeon® E5-2683v3 (2GHz/14C/35MB/120W) 719055-B21;
Intel® Xeon® E5-2690v3 (2.6GHz/12C/30MB/135W) 719044-B21;
Intel® Xeon® E5-2695v3 (2.3GHz/14C/35MB/120W) 762760-B21;
Intel® Xeon® E5-2697v3 (2.6GHz/14C/35MB/145W) 719054-B21;
Intel® Xeon® E5-2698v3 (2.3GHz/16C/40MB/135W) 781913-B21;
Intel® Xeon® E5-2699v3 (2.3GHz/18C/45MB/145W) 781915-B21;
Intel® Xeon® E5-2687Wv3 (3.1GHz/10C/25MB/160W) 762768-B21
Max CPU Clk Spd Up to 3.5 GHz
CPU Cache Up to 45 MB L3 per Socket
Max # Thread(s) Up to 36 per Socket
Max # Core(s) Up to 18 per Socket
Memory Slot(s) 24 DDR4 Registered (RDIMM) or Load Reduced (LRDIMM)
Memory Capacity 768 GB
Drive Bays 4 or 12 LFF; 8 or 24 SFF
Capacity Up to 90.0 TB
HDD Suitability Hot Plug SAS, SATA, or SSD
RAID Controller HP B140i, P440ar/2GB; or P840ar/4GB
Supported OS Microsoft Windows Server;
Canonical Ubuntu;
Red Hat Enterprise Linux (RHEL);
SUSE Linux Enterprise Server (SLES);
Oracle Solaris;
Citrix XenServer
USB Port(s) Up to 5 total: 1 front, 2 rear, 2 internal (secure), 2 optional USB 2.0 front via Universal Media Bay
PCI Slot(s) Up to 6 PCIe Gen 3.0
Serial Ports Optional
LAN Socket(s) 4 x 1Gb ports shipping standard with optional FlexibleLOM. 10Gb networking options available via FlexLOM.
Graphics / GPU 2 (1 front, optional via Universal Media Bay, 724865-B21), 1 back not active simultaneously
Standard Server Warranty includes 3 - Year Parts, 3 - Year Labor, 3 - Year Onsite support with next business day response.
HP ProLiant DL380 Gen9 Server
