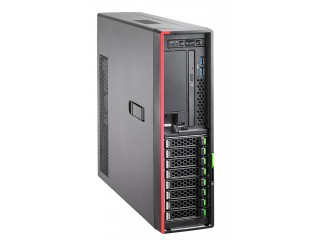

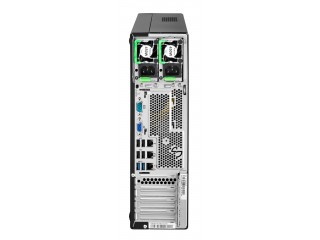

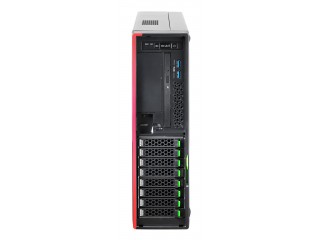

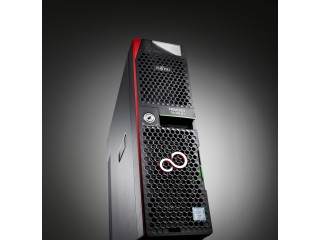

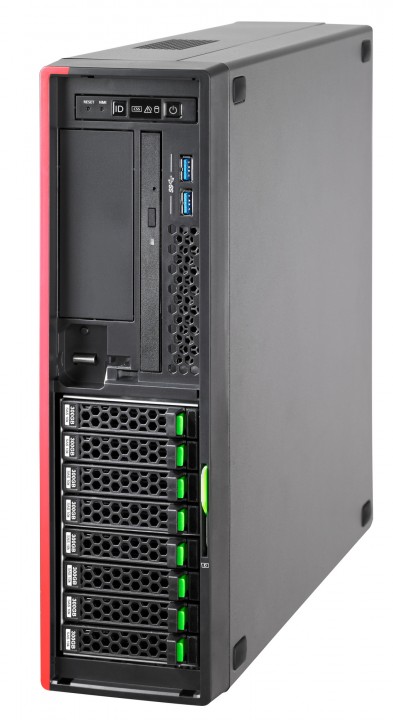

FUJITSU PRIMERGY TX1320 M3 Tower Server
The smallest full-fledged server for growing your business
[S26361-K1591-V101]Details
ideal for both classic Small and Medium Enterprise workloads, plus space constrained environments
The ultracompact, performance oriented mono-socket design supports the latest Intel® Xeon ® E3-1200 v6 product family plus up to 64GB RAM, to boost performance for standard infrastructure workloads such as file, print, web and collaborative ones such as email, plus business applications.
Affordable Intel® Core™ i3, Pentium® and Celeron® processor options are also available.
Institutions with legal requirements such as medical, Governmental, legal, or financial offices can benefit from the server’s secure, robust storage and transmission features which include up to eight high quality 2.5-inch hard drives, powerful RAID controllers, versatile and affordable backup and networking options plus TPM 2.0 capability.
High efficiency (94%) redundant power supplies and the innovative Fujitsu Battery Backup Unit enhance reliability and protect customer investment.
This ultra-compact, silent server is designed for deployment flexibility – it can be deployed in offices, on rack shelves and even on desks.
The server also features powerful management capabilities with the iRMC S4 and the Fujitsu ServerView suite, allowing it to be easily managed across its entire lifecycle, including deployment, installation and administration.
Ultra-compact server with full featured performance
- Wide choice of the latest Intel® Xeon ® E3-1200 v6 product family processors for optimal compute. Affordable Core™ i3, Pentium® and Celeron® options are also available. Up to 64 GB DDR4 ECC memory (4 DIMMs) is supported for high-speed, reliable performance
- Enhanced, reliable storage with Brand new design featuring slim HDD frames. The server can support up to 2x 3.5-inch (SATA) or 8x hot-plug 2.5-inch (SAS/SATA) drives plus RDX backup. Powerful SAS 3.0 RAID Controllers with 1/2 GB cache are available (even more advanced units are on the roadmap)
- Security optimized design with TPM 2.0 support plus Fujitsu’s secure 3-way lock for server access
- Redundant (2x1GbE) LAN as standard. Higher connectivity options also available
- Future ready with 4x PCIe Gen3 slots
- Power packed performance for Small and Medium Enterprises, retail premises which have space challenges and need the latest compute and memory technology for their specific requirements. Workloads can span classic infrastructure workloads (file, print, web), collaborative (email), or more demanding industry specific applications
- A server which features the right mix of capacity (up to 20TB), and reliable storage with backup capability. Ideal for customers with large dataset requirements, for data consolidation needs or for institutions with legal requirements which need secure, reliable storage
- Adds security capabilities to protect your valuable enterprise data from unauthorized access. Additional networking options are available for enhanced business specific needs
- Reliable data connectivity out of the box, with advanced options (10GbE) for more demanding requirements already available
- The server grows in synch with your business. Upgrade the server with Fujitsu RAID controllers for reliable data storage (high grade SAS 3.0 with up to 1/2 GB cache, more advanced units on the roadmap) or networking cards (including 10GbE options) for seamless data transmission
Energy efficiency hand in hand with enhanced reliability
- High efficiency 450W power supplies (94% efficiency) are now available with both hot-plug capability and redundancy
- Fujitsu Battery Backup Unit, an optional Internal UPS in modular PSU formfactor, 5 years lifetime, fully integrated
- Good for the environment, and your business – the high efficiency, redundant power supplies offer enhanced reliability and lower energy expenditure
- The Battery Backup Unit protects your valuable investment by supporting safe power down and conflict free power up in case of power loss
The most compact server in its class - deploy anywhere
- Ultra-small form factor improved with the all new design
- Low noise emissions by design, with optimized air flow and Fujitsu’s Coolsafe ® Advanced Thermal Design technology
- Fits almost everywhere and saves space - ideal for small offices, at point of sales or even in compact racks or placed on shelves
- Silent Operation and expanded range of operation (5 °C to 40 °C). The server can be used in offices, showrooms and even be placed on desks
Full server management features and easy accessibility
Part No. | S26361-K1591-V101 |
---|---|
Manufacturer | Fujitsu |
End of Life? | No |
Preceeded By | TX1320 M2 |
Height | 340 |
Width | 98 |
Depth | 399 |
Weight [Kg] | 10.00 |
CPU Socket(s) | 1 x Intel® Xeon® processor E3-1200 v6 product family / Intel® Core™ i3 processor / Intel® Pentium® processor |
Compatible CPU(s) | G3930 (2C, 2.90 GHz, TLC: 2 MB, T: No, 2,133 MHz, 51 W); i3-7100 (2C, 3.90 GHz, TLC: 3 MB, T: No, 2,400 MHz, 51 W); G4560 (2C, 3.50 GHz, TLC: 3 MB, T: No, 2,400 MHz, 54 W); E3-1220v6 (4C, 3.00 GHz, TLC: 8 MB, T: 3.30 GHz, 2,400 MHz, 72 W); E3-1225v6 (4C, 3.30 GHz, TLC: 8 MB, T: 3.50 GHz, 2,400 MHz, 73 W); E3-1230v6 (4C, 3.50 GHz, TLC: 8 MB, T: 3.70 GHz, 2,400 MHz, 72 W); E3-1240v6 (4C, 3.70 GHz, TLC: 8 MB, T: 3.90 GHz, 2,400 MHz, 72 W); E3-1270v6 (4C, 3.80 GHz, TLC: 8 MB, T: 4.00 GHz, 2,400 MHz, 72 W); E3-1280v6 (4C, 3.90 GHz, TLC: 8 MB, T: 4.00 GHz, 2,400 MHz, 72 W) |
Max CPU Clk Spd | Up to 4 GHz (Turbo, cores disabled) |
CPU Cache | Up to 8 MB per CPU |
Max # Thread(s) | Up to 8 Threads per CPU |
Max # Core(s) | Up to 4 per CPU |
Memory Slot(s) | 4 |
Memory Capacity | 4 GB - 64 GB |
Memory Expansion | Mix and match possible; with dual channel operation better performance (2 modules with equal capacity necessary). Single channel (1 module) configuration possible. |
Drive Bays | 3.5-inch non hot-plug; 2.5-inch hot-plug SAS/SATA |
HDD Suitability | Not upgradeable in the field. |
SATA Controller | Intel® C236, 2 ports used for accessible drives |
RAID Controller | Optionally integrated RAID 0/1 or RAID 5/6 controller for SAS base units (occupies one PCIe slot). |
Supported OS | Microsoft® Hyper-V Server 2016; Microsoft® Windows Server® 2016 Datacenter; Microsoft® Windows Server® 2016 Standard; Microsoft® Windows Server® 2016 Essentials; Microsoft® Windows Storage Server 2016 Standard; Microsoft® Hyper-V Server 2012 R2; Microsoft® Windows Server® 2012 R2 Datacenter; Microsoft® Windows Server® 2012 R2 Standard; Microsoft® Windows Server® 2012 R2 Essentials; Microsoft® Windows Server® 2012 R2 Foundation; Microsoft® Windows Storage Server 2012 R2 Standard; Microsoft® Hyper-V Server 2012; Microsoft® Windows Server® 2012 Datacenter; Microsoft® Windows Server® 2012 Standard; Microsoft® Windows Server® 2012 Essentials; Microsoft® Windows Server® 2012 Foundation VMware vSphere™ 6.5; VMware vSphere™ 6.0; SUSE® Linux Enterprise Server 12; Red Hat® Enterprise Linux 7 |
USB Port(s) | 5 (2x external rear, 2x external front, 1x internal) (USB 3.0)5 (4x external rear, 1x internal for UFM, no USB wakeup supported) (USB 2.0) |
PCI Slot(s) | PCI-Express 3.0 x1 (mech.x4) 1 x Low profile PCI-Express 3.0 x4 1 x Low profile PCI-Express 3.0 x8 2 x Low profile notched |
Serial Ports | 1 serial RS-232-C |
LAN Socket(s) | 2 x1 Gb/s Ethernet; RJ45 |
LAN Controller(s) | Intel® i210 onboard 2 x 10/100/1000 Mbit/s EthernetiSCSI, PXE-Boot and WoL are supported |
Graphics / GPU | 1 analog graphics interface derived from iRMC (up to 1600x1200 or 1920x1080 at 16bpp) |
Graphics Cards | NVIDIA® NVS™315 LP, PCIe x16, 2x DVI/VGA |
Standard | 1 year Onsite Service |
Optional | X - Globally available in major business areas: 9x5, Next Business Day Onsite Response Time 9x5, 4h Onsite Response Time (depending on country) 24x7, 4h Onsite Response Time (depending on country) |
