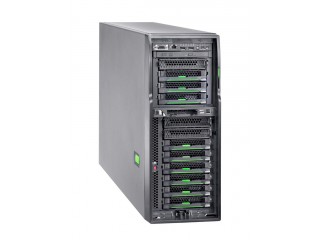

The PRIMERGY TX300 S7 is a no compromise tower server with maximum levels of performance, expandability and availability. It combines the performance of Intel® Xeon® processors E5 family with up to two 6GB general-purpose computing on graphics processing units (GPGPU) for computationally intensive applications. The expandability is excellent thanks to the 10 expansion slots and up to 24 2.5-inch hard disks. Thanks to the high availability offered by a choice of LAN cards, redundant fans and up to 4 hot-plug power supplies, the TX300 S7 is suited to database, virtualization or high performance computing scenarios. Moreover, the TX300 S7 power supplies reach energy efficiency levels of 94%, minimizing running costs and the environmental impact.
Details
PRIMERGY TX tower servers are ideal for use in SMEs or branch offices. They increase operational efficiency by providing rock solid, record-breaking, energy efficient performance. That performance is built on 20-years of pioneering work in Green IT. As a customer, you benefit from a reduction in your organization’s environmental impact and lower running costs. The reliability is proven by testing the machines through 5000 boot cycles – far more than other vendors do. PRIMERGY TX servers are also easy to manage via the PRIMERGY ServerView Suite, reducing IT admin workload and costs. Plus, tower to rack conversion kits are available for most TX systems, ensuring investment protection.
| Part No. | tx300s7 |
|---|---|
| Manufacturer | Fujitsu |
| Height | 456 mm |
| Width | 177 mm |
| Depth | 777 mm |
| Weight [Kg] | 35.00 |
| CPU Socket(s) | 1 or 2 Intel® Xeon® E5-2600 |
| Compatible CPU(s) | Intel® Xeon® E5-2603 (4C/4T, 1.80 GHz, TLC: 10 MB); Intel® Xeon® E5-2609 (4C/4T, 2.40 GHz, TLC: 10 MB); Intel® Xeon® E5-2620 (6C/12T, 2.00 GHz, TLC: 15 MB); Intel® Xeon® E5-2630 (6C/12T, 2.30 GHz, TLC: 15 MB); Intel® Xeon® E5-2630L (6C/12T, 2.00 GHz, TLC: 15 MB); Intel® Xeon® E5-2637 (2C/4T, 3.00 GHz, TLC: 5 MB); Intel® Xeon® E5-2640 (6C/12T, 2.50 GHz, TLC: 15 MB); Intel® Xeon® E5-2643 (4C/8T, 3.30 GHz, TLC: 10 MB); Intel® Xeon® E5-2650 (8C/16T, 2.00 GHz, TLC: 20 MB); Intel® Xeon® E5-2650L (8C/16T, 1.80 GHz, TLC: 20 MB); Intel® Xeon® E5-2660 (8C/16T, 2.20 GHz, TLC: 20 MB); Intel® Xeon® E5-2665 (8C/16T, 2.40 GHz, TLC: 20 MB); Intel® Xeon® E5-2667 (6C/12T, 2.90 GHz, TLC: 15 MB); Intel® Xeon® E5-2670 (8C/16T, 2.60 GHz, TLC: 20 MB); Intel® Xeon® E5-2680 (8C/16T, 2.70 GHz, TLC: 20 MB); Intel® Xeon® E5-2690 (8C/16T, 2.90 GHz, TLC: 20 MB) |
| Max CPU Clk Spd | Up to 3.30 Ghz |
| CPU Cache | 5, 10, 15 or 20 MB per CPU (TLC) |
| Max # Thread(s) | 8, 12 or 16 per CPU |
| Max # Core(s) | 2, 4, 6 or 8 per CPU |
| Memory Slot(s) | 24 (12 DIMMs per CPU, 4 channels with 3 slots per channel) |
| Memory Capacity | 768 GB |
| Drive Bays | 4x 3.5-inch hot-plug SAS/SATA or 8x 2.5-inch hot-plug SAS/SATA Expandable to 24x 2.5" |
| Capacity | Up to 24.0 TB |
| HDD Suitability | SSD SATA, 3 Gb/s, 32 GB, SLC, 2.5", enterprise; SSD SAS, 6 Gb/s, 400 GB, SLC, 2.5", enterprise; SSD SAS, 6 Gb/s, 200 GB, SLC, 2.5", enterprise; SSD SAS, 6 Gb/s, 100 GB, SLC, 2.5", enterprise; HDD SATA, 6 Gb/s, 500 GB, 7200 rpm, 3.5", business critical; HDD SATA, 6 Gb/s, 500 GB, 7200 rpm, 2.5", business critical; HDD SATA, 6 Gb/s, 250 GB, 7200 rpm, 2.5", business critical; HDD SATA, 6 Gb/s, 2 TB, 7200 rpm, 3.5", business critical; HDD SATA, 6 Gb/s, 1 TB, 7200 rpm, 3.5", business critical; HDD SATA, 6 Gb/s, 1 TB, 7200 rpm, 2.5", business critical; HDD SATA, 3 Gb/s, 2 TB, 7200 rpm, 3.5", business critical; HDD SAS, 6 Gb/s, 900 GB, 10k rpm, 2.5", enterprise; HDD SAS, 6 Gb/s, 600 GB, 15k rpm, 3.5", enterprise; HDD SAS, 6 Gb/s, 600 GB, 10k rpm, 2.5", enterprise; HDD SAS, 6 Gb/s, 450 GB, 15k rpm, 3.5", enterprise; HDD SAS, 6 Gb/s, 450 GB, 10k rpm, 2.5", enterprise; HDD SAS, 6 Gb/s, 300 GB, 15k rpm, 3.5", enterprise; HDD SAS, 6 Gb/s, 300 GB, 15k rpm, 2.5", enterprise; HDD SAS, 6 Gb/s, 300 GB, 10k rpm, 2.5", enterprise; HDD SAS, 6 Gb/s, 146 GB, 15k rpm, 2.5", enterprise; HDD SAS, 6 Gb/s, 73 GB, 15k rpm, 2.5", enterprise |
| SATA Controller | Intel® C600, 2 x SATA channel for DVD |
| RAID Controller | 4 port for internal 3G SATA and SAS (as upgrade option “Patsburg B”) for HDDs or SAS LTO device (Intel C600) |
| RAID Options | 0/1/10 |
| Supported OS | Microsoft® Hyper-V™ Server 2008 R2 |
| USB Port(s) | 10 x USB 2.0 (2x front, 4x rear, 2x internal for backup devices, 1x USB stick, 1x USSD) |
| PCI Slot(s) | PCI-Express 3.0 x4 (mech. x8) 2 x Full height (2nd processor required); PCI-Express 3.0 x8 4 x Full height (1 is reserved for Modular RAID controller); PCI-Express 3.0 x8 (mech. x16) 1 x Full height; PCI-Express 3.0 x16 2 x Full height (2nd processor required); PCI-Express 2.0 x4 (mech. x8) 1 x Full height (2nd processor required) |
| Serial Ports | 1 x serial RS-232-C, usable for iRMC S3 or system or shared |
| LAN Socket(s) | 2 x Gbit/s Ethernet (RJ45) plus 2x1 Gbit/s as default Modular On-Board LAN with upgrade options to 4x 1 Gbit/s (RJ45) or 2x 10 Gbit/s (SFP+) |
| LAN Controller(s) | Intel® Ethernet Controller I350, 2 x 10/100/1000 Mbit/s Ethernet (I/O acceleration), In addition 2x1 Gbit/s as default Modular On-Board LAN with upgrade options to 4x 1 Gbit/s or 2x 10 Gbit/s PXE-Boot via LAN from PXE server, iSCSI boot (also diskless) |
| Bandwidth | 1 or 10 GbE |
| Graphics / GPU | 1-2 NVIDIA® Tesla™ C2075 computing processor |
| Standard | 3 years, On-site Service (depending on country) |
| Optional | 7x24, Onsite Response Time: 4h |
