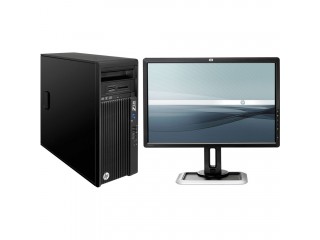

HP Z230 Tower Workstation

Affordable performance and flexibility, re-defined.


More Image(s)

Designed for heavy 24x7x365 workloads, the HP Z230 delivers next-generation processor and graphics technologies in a redesigned, compact yet impressively expandable tower.
Availability: In stock

For details on how to purchase the HP Z230 Tower Workstation, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


Rock solid reliability, affordably priced

Designed for heavy 24x7x365 workloads. The affordable HP Z230 Tower Workstation handles the demanding workloads of business applications. Gain peace of mind from our extreme test and validation processes with workstations designed for always-on environments. Control your environmental impact better than ever while lowering your total cost of ownership with a 92% efficient power supply and enhanced system reliability. Work smarter with your software tools. This HP workstation has earned a wide range of ISV certifications to deliver better, smarter performance.

Power for now, room to grow

Grow along with your business. The HP Z230 Tower Workstation is designed to scale and expand, so you can add more storage and connectivity when you need it. Complete computing power in a new compact design. HP's redesigned and more compact workstation is robust and flexible, while freeing up more space for work. Spend less time waiting. Speed up data transfers with six available drive bays including a 6,3 cm (2.5") HD bay for high speed solid state drives. Boost your storage performance with RAID, solid state drives, or get the best of both worlds by combining large hard drives with an optional solid state drive as a cache device. Optimize this workstation for peak performance. HP performance advisor helps you easily configure your system with the best settings designed for specific applications.

Totally immersive. Perfectly productive.

Power to spare and share. The latest Inel Xeon processors and rich graphics keep up with your work. Plug in and work on up to six displays. Enjoy the latest in performance and energy efficiency from intel's next generation processor architecture. Keep more work front and center with support for up to six monitors. Choose between cost effective integrated graphics and powerful 2D or 3D discrete graphics choices. Easily connect your peripherals and devices using the four PCIe slots, one PCI input/output slot, ten external USB ports and fast charging USB port. With HP RGS you can take your graphics intensive workstation applications wherever you go. Collaborate with colleagues around the office or around the world, in real time.
Part No. HPZ230
Manufacturer HP
End of Life? No
Rack Units Tower
Height 39.9
Width 17
Depth 44.2
Weight [Kg] 8.80
CPU Socket(s) 3.6 GHz
Compatible CPU(s) Intel® Core™ i7-4790
Intel® Core™ i7 processor family
CPU Cache 8 MB cache
Max # Core(s) 4 cores
Memory Slot(s) 4 DIMM
Memory Expansion Upgradeable to 32 GB
Drive Bays 2 internal 3.5-inch bays, 1 internal 2.5-inch bay (for SSD only), 1 external slim ODD bay, 2 external Half-Height 5.25-inch bays
HDD Suitability Up to (3) 3.5-inch 7200 rpm SATA drives: 500 GB, 1, 2, 3 or 4 TB (12 TB max) Up to (3) 2.5-inch SATA SSD drives: 128, 180, 240, 256, 480, 512 GB, or 1 TB (3 TB max) Up to (1) 2.5-inch SATA self-encrypting solid state boot drive (SED SSD): 256 GB Up to (1) 2.5-inch SATA self-encrypting 7200 rpm boot drive (SED): 180, 500 GB Up to (1) PCIe SSD: HP Z Turbo Drive 256 GB, HP Z Turbo Drive 512 GB**** Optional (1) 64 GB SSD Disk Cache Module can be used in conjunction with up to (2) SATA HDDs in RAID 0/RAID 1 using Intel® Smart Response Technology
SATA Controller Integrated SATA Controller, RAID 0,1 supported: 5 ports, 6 Gb/s
USB Port(s) Front: 2 USB 3.0; 1 USB 2.0; 1 USB 2.0 Charging // Rear: 2 USB 3.0; 4 USB 2.0 // Internal: 1 USB 3.0, 3 USB 2.0
PCI Slot(s) 1 PCIe Gen3 x16, 1 PCIe Gen2 x4 slot/x16 connector, 1 PCIe Gen2 x1 slot/x4 connector, 1 PCIe Gen2 x1 slot, 1 PCI 32-bit.
LAN Socket(s) Integrated Intel I217LM PCIe GbE Controller; Optional Intel Ethernet I210-T1 PCIe as 2nd NIC; WLAN Intel 7260 802.11 a/b/g/n/ PCIe x 1 NIC
Graphics / GPU Intel HD Graphics 4600
Graphics Cards Integrated Graphics: Intel® HD Graphics available on select processors as above Professional 2D: NVIDIA® NVS™ 310, NVIDIA® NVS™ 315, NVIDIA® NVS™ 510 Entry 3D: AMD FirePro™ W2100, NVIDIA® Quadro® K420, NVIDIA® Quadro® K620 Mid-range 3D: AMD FirePro™ W5100, NVIDIA® Quadro® K2000, NVIDIA® Quadro® K2200 High-end 3D: AMD FirePro™ W7000 (AMO† only), AMD FirePro™ W7100 (AMO† only), NVIDIA® Quadro® K4200
Standard -year limited warranty including 3 years of parts, labour, and next-business-day onsite service. Terms and conditions vary by country. Certain restrictions and exclusions apply.
