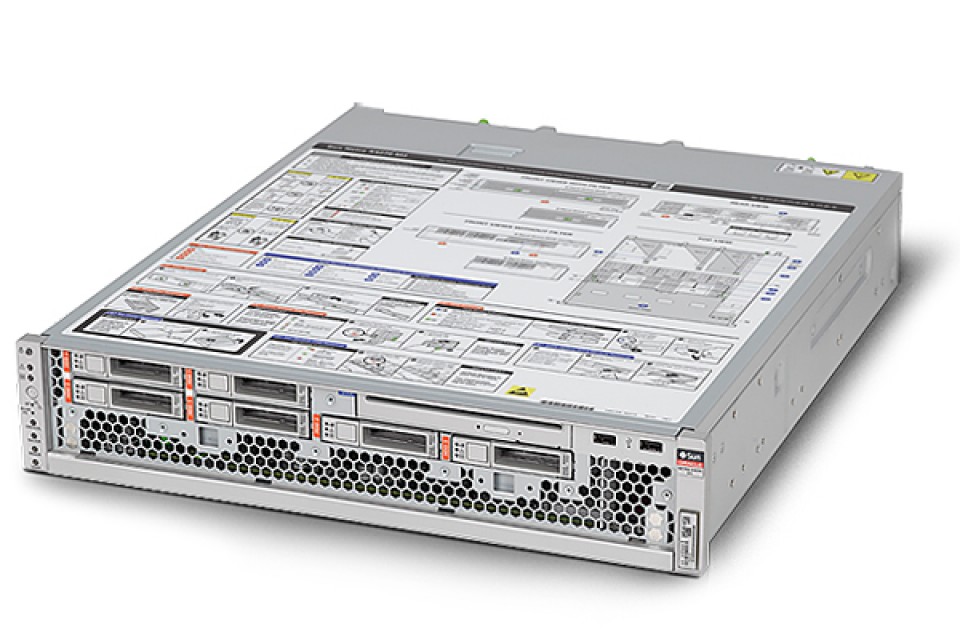

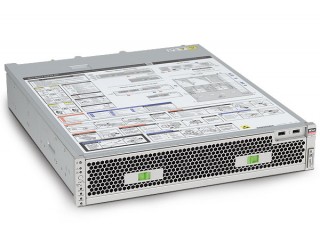

Oracle Sun Netra X3-2 Rack Mount Server



More Image(s)

Oracle's Sun Netra X3-2 server is an x86-based carrier grade server ideal for demanding network infrastructure workloads and cloud-based deployments. This reliable, scalable, and easy-to manage server is designed to meet requirements of telco networks for increasing compute power, memory, and I/O bandwidth.

Availability: In stock

For details on how to purchase the Oracle Sun Netra X3-2 Rack Mount Server, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


Powered by two Intel Xeon processor E5-2600 Series-based Platform for Intelligent Systems, the carrier-grade Sun Netra X3-2 server combines cutting-edge performance with the ruggedness, reliability, and long system lifecycles of the Sun Netra server family. The Sun Netra X3-2 server is the safe solution for high-performance communication workloads and cloud infrastructure deployments that require continuous system availability.

The server doubles the number of CPU cores and storage capacity from the previousgeneration server with support for up to 16 cores and eight internal disk drives to deliver a considerable 2.5x increase in compute power. For even more flexibility, the Sun Netra X4270 M3 server provides six high-bandwidth PCIe 3.0 slots and integrates four 10 GbE ports to provide connectivity for high-speed, high-bandwidth networking. Redundant hot-swappable AC or DC power supplies and hot-swappable AC or DC power supplies and hot-pluggable hard disk drives enhance the system's uptime.

Part No. netra-x3-2
Manufacturer Sun Oracle
Rack Units 2 U
Height 87
Width 445
Depth 527.8
Weight [Kg] 18.50
Specification NEBS: NEBS Level 3 certified by Telecordia Seismic: GR-63-CORE requirements for earthquake Zone 4
CPU Socket(s) 2 Intel® Xeon® E5-2600, with QuickPath Interconnect
Compatible CPU(s) 2.1 GHz, 95W, 8 Core
Max CPU Clk Spd 2.1 GHz
CPU Cache Level 1: 32 KB instruction and 32 KB data L1 cache per core;
Level 2: 256 KB shared instruction/data L2 cache per core;
Level 3: Up to 20 MB shared inclusive L3 cache per processor
Max # Core(s) 8 per CPU
Memory Slot(s) 16x DDR3 Low Voltage RDIMM (LV RDIMM options: 8 GB at up to 1,600 MHz, 16 GB at up to 1,600 MHz)
Memory Capacity 256 GB
Drive Bays Eight-disk chassis, eight 2.5" SAS-2 front-accessible, hot-swappable disk drives with no DVD-RW; or
Six-disk chassis, six 2.5" SAS-2 front-accessible, hot-swappable disk drives and DVD-RW
Capacity Up to 4.8 TB
HDD Suitability 300 GB, or 600 GB 10krpm
RAID Options Optional RAID levels: 0, 1, 1E, 5, 5EE, 6, 10 with optional Battery Backup Write Cache (BBWC) via optional SAS HBA PCIe Card.
Supported OS

Oracle Linux

Oracle Solaris (pre-installed option)

Red Hat Enterprise Linux

SUSE Linux Enterprise Server

Microsoft Windows Server

USB Port(s) Six 2.0 USB ports (two front, two rear, two internal)
PCI Slot(s) Six PCIe 3.0 LP slots - six (6) x8-lane slots
LAN Socket(s) Four 10/100/1000/10G Base-T Ethernet ports
Bandwidth 10 GbE
Graphics / GPU VGA 2D graphics controller embedded
Resolution (Native) Supports resolutions up to 1,280 x 1,024 x 16 bits @60 Hz (1,024 x 768 when viewed remotely via Oracle ILOM RKVMS)
Standard The Sun Netra X4270 M3 server comes with a one-year warranty.

Others Products of Interest

The Sun Netra X3-2 server helps cut costs and lower risks with comprehensive virtualization, a choice of world-class Oracle operating systems, and a complete cloud optimized infrastructure, all built in, at no extra charge. Proven effective across a wide range of applications and under the most demanding conditions, Oracle's Sun Netra X4270 M3 server allows telecommunication customers to shorten time to develop and deploy new services.
