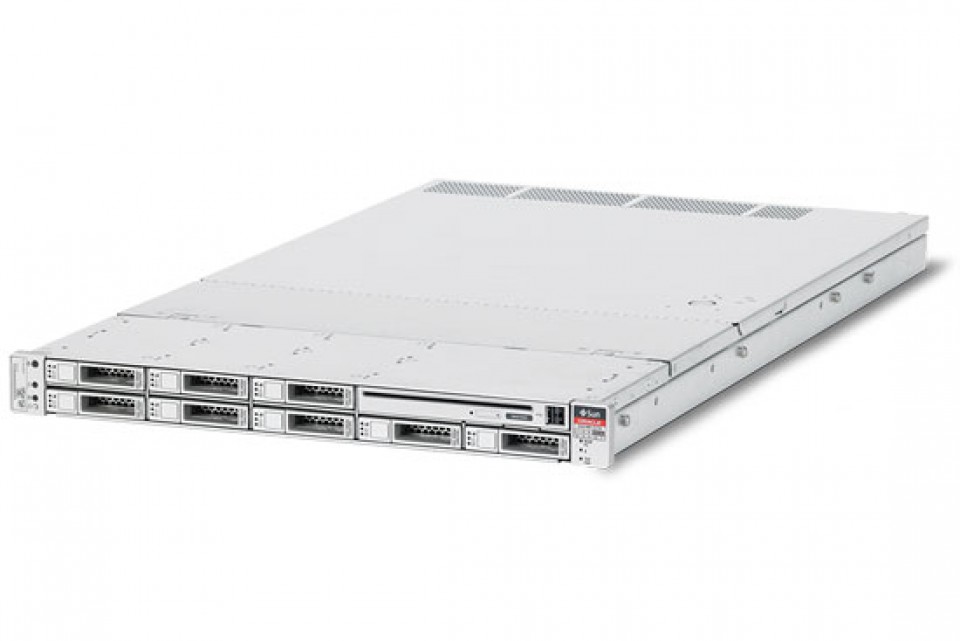

Oracle Sun Fire X4170 M2 Server

Compact 1 RU enterprise-class server


More Image(s)

Packing the optimal balance of compute power, memory capacity, and I/O capability into a compact and energy efficient 1 rack unit (RU) enclosure, Oracle’s Sun Fire X4170 M2 server is the most versatile IT infrastructure building block. This server is ideal for middleware workloads, enterprise systems administration needs, such as identity management, network management, and systems management, and as a platform for application development.

Availability: In stock

For details on how to purchase the Oracle Sun Fire X4170 M2 Server, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


The Sun Fire X4170 M2 server utilizes the Intel Xeon Processor 5600 Series and offers unparalleled performance balanced with compute, memory and I/O capabilities that are accelerated with two flash options, making it the most versatile building block for a number of IT applications. It is ideal for running middleware applications such as WebLogic, systems administration applications such as Oracle Enterprise Manager and Oracle Identity Manager, and software development applications such as Oracle Solaris Studio.

The two new flash integration options include Solid State Drives (SSDs), and Sun Flash Accelerator PCIe cards, which can deliver I/O performance improvements equivalent to four hundred 15k RPM HDDs. They can also reduce power consumption by as much as eighty percent. In addition, storage connectivity bandwidth is doubled from the previous generation server with the upgrade to SAS-2 interfaces. The combination of these features with high efficiency power supplies and new algorithms for power capping make this server the best performing and most efficient of its kind.

System management is simplified with Oracle Integrated Lights Out Manager (ILOM) that comes standard in every Sun Fire X4170 M2 server. ILOM centralizes system management locally or remotely to ease system configuration, software provisioning and updates, providing a consistent interface across the entire x86 product line.

Part No. 079875
Manufacturer Sun Oracle
End of Life? Yes
Preceeded By Sun Fire X4150 Server
Succeeded By Sun Server X4-2
Rack Units 1 U
Height 43.43
Width 425.45
Depth 685.8
Weight [Kg] 16.38
CPU Socket(s) 1 or 2
Compatible CPU(s) Intel Xeon Processor 5600 Series
CPU Cache Level 1: 32 KB instruction and 32KB data;
Level 2: 256 KB unified;
Level 3: 12 MB shared inclusive;
Memory Slot(s) Eighteen DDR3 DIMM slots (nine DIMM slots per CPU socket)
Memory Capacity 4 GB and 8 GB Low voltage DIMMs for a maximum of 144 GB per system
Drive Bays Eight 2.5” SAS-2/SATA-2 front accessible disk bays
Capacity Optional Sun Flash Accelerator F20 PCIe Card
HDD Suitability All bays can be populated with either HDDs or SSDs
RAID Options Optional RAID levels: 0, 1, 1E, 5, 5EE, 6, 10 with optional Battery Backup Write Cache (BBWC) via optional HBA PCIe Card
Supported OS

Oracle Linux
Oracle Solaris (Pre-installed)
Red Hat Enterprise Linux
SuSE Linux Enterprise Server
Microsoft Windows Server

USB Port(s) Five 2.0 USB ports (two front, two rear, one internal)
PCI Slot(s) Three PCIe 2.0 slots : One x16-lane electrical/mechanical, two x8-lane electrical/mechanical
LAN Socket(s) Four 10/100/1000 Base-T Ethernet ports
Graphics / GPU VGA 2D graphics controller embedded
Resolution (Native) Supports resolutions up to 1600x1200x16 bits @60 Hz (1024x768 when viewed remotely via ILOM RKVMS)
Standard The Sun Fire X4170 M2 server comes with a one-year warranty.
