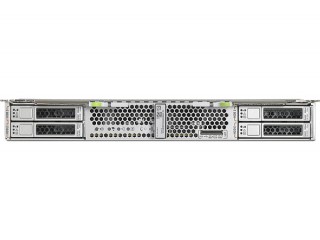

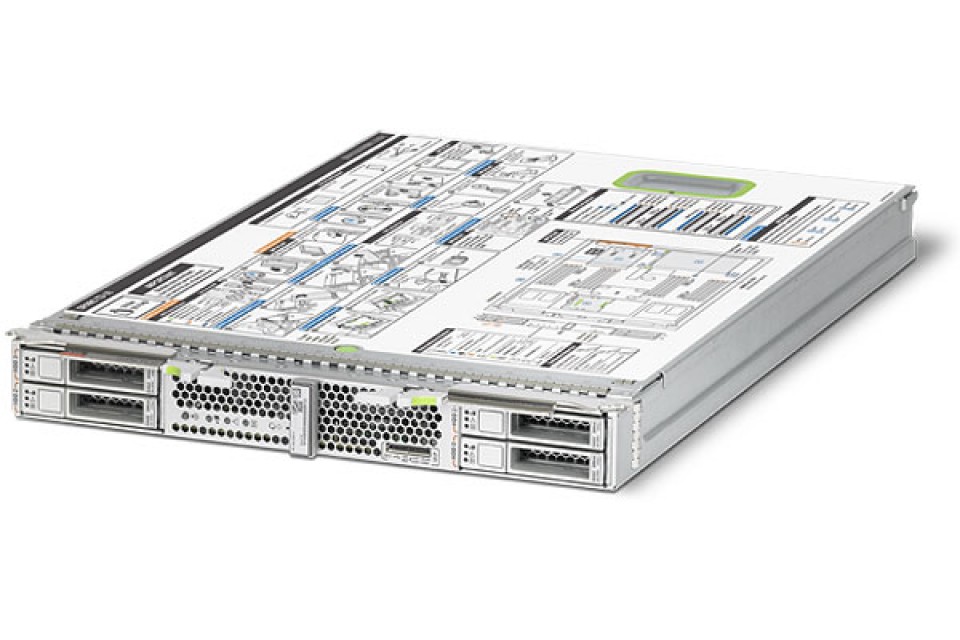

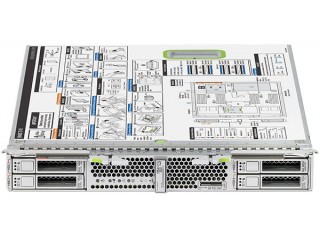

Sun Oracle SPARC T3-1B Blade Server Module



More Image(s)

Oracle’s SPARC T3-1B and Oracle’s Sun Blade 6000 chassis deliver an integrated platform with a high degree of scalability, density, deployment flexibility, and energy efficiency to meet the high demands of secure, enterprise datacenter applications.
Availability: In stock

For details on how to purchase the Sun Oracle SPARC T3-1B Blade Server Module, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


As the highest-density SPARC T3 server available in a compact blade form factor, the SPARC T3-1B delivers massive throughput, and no-cost virtualization running the proven, enterprise-ready Oracle Solaris operating system.

The single-socket SPARC T3-1B server module delivers massive compute density with up to 16 cores and up to 128 simultaneous threads.

With the world’s first 16 core, 128 thread SPARC T3 processor, 16 DIMM slots for up to 128GB memory, and four drive slots for hot-pluggable 2.5 inch SAS drives, the SPARC T3-1B blade is both compact and powerful. With integrated 10 GbE networking and built-in PCI Express Generation 2 expansion, the SPARC T3-1B has the power required to drive computing requirements for web services and middleware applications.

The SPARC T3-1B, Oracle Solaris, and Oracle VM Server for SPARC are optimized for the enterprise to meet the demands of enterprise infrastructure workloads in a highly cost-efficient blade infrastructure. The SPARC T3-1B comes ready with Oracle Solaris Containers and Oracle VM technology, for faster and more-reliable consolidation and virtualization in your IT infrastructure at no extra cost.

The Sun Blade 6000 and SPARC T3-1B are enterprise ready. Combining the chassis-based RAS features with Oracle Integrated Lights Out Management (ILOM), the Sun Blade 6000 and SPARC T3-1B are designed to maximize uptime, simplify system management, and reduce administration costs.

Part No. t3-1b
Manufacturer Sun Oracle
End of Life? Yes
Succeeded By SPARC T5-1B Server Module
Rack Units 1 Blade Unit
Height 44.45 mm
Width 327.15 mm
Depth 496.82 mm
Weight [Kg] 8.30
CPU Socket(s) 1
Compatible CPU(s) SPARC T3 8 Core or 16 Core
Max CPU Clk Spd 1.65 GHz
Max # Thread(s) 128
Memory Slot(s) 16
Memory Capacity 128 GB
Drive Bays 8x SAS 2.0 Interfaces
4x Optional Internal 300 GB 10Krpm SAS Drives
RAID Options LSI SAS2008 Controller
RAID 0,1 Support
Supported OS Oracle Solaris 10 9/10 (U9) preloaded
Support for Solaris 10 10/09 (U8) + Oracle Solaris Patch Bundle
Oracle VM Server for SPARC 2.0
Electronic Prognostics 1.1
USB Port(s) 2x USB 2.0
PCI Slot(s) 4x x8 PCIe Busses 4x 3.0 GB/sec SAS Interfaces, two per NEM
LAN Socket(s) 2x 10/100/1000 GbE Interfaces, one per NEM
10/100 Ethernet Management Port for CMM

Others Products of Interest

The SPARC T3-1B installs in the highly efficient Sun Blade 6000 chassis supporting up to 10 full-featured, top-performance Oracle blade server modules, and PCIe Gen2, in a compact 10U form factor, with I/O throughput up to 144Gb/sec. The Sun Blade 6000 provides up to 6.4 terabit-per-second headroom for future CPU and I/O architectures. Designed for high reliability and efficiency, the Sun Blade 6000 provides a flexible, modular network infrastructure. With the Sun Blade 6000 chassis and SPARC T3-1B blade server, customers are able to greatly reduce their time-to-revenue and virtually eliminate downtime for I/O upgrades.
