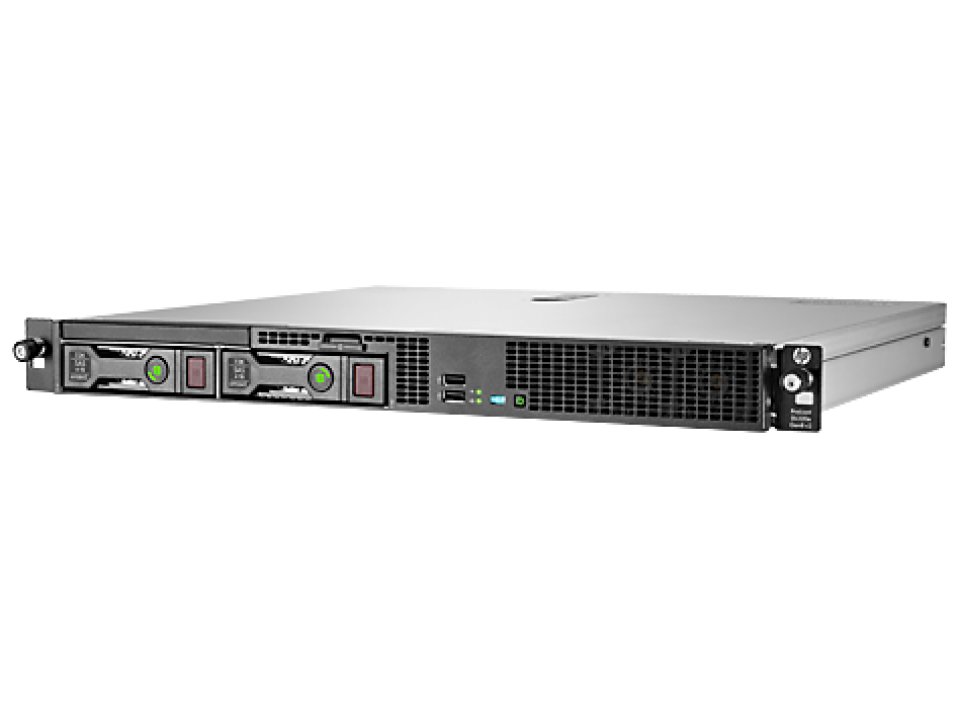

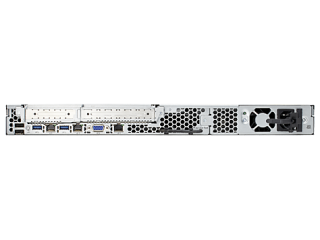

HP ProLiant DL320e Gen8 V2 Server
An entry-level single processor 1U short depth rack server
[717170-421]
The HP ProLiant DL320e Gen8 v2 Server is an entry-level single processor 1U short depth rack server specifically designed to give you the competitive edge you need.
Availability: In stock
Details
Part No. | 717170-421 |
---|---|
Manufacturer | HP |
End of Life? | No |
Preceeded By | ProLiant DL320e Gen8 |
Rack Units | 1 RU |
Height | 43.2 |
Width | 434.6 |
Depth | 383 |
Weight [Kg] | 8.00 |
CPU Socket(s) | 1 |
Compatible CPU(s) | Intel® Xeon® E3-1200v3 product family Intel® Xeon® E3-1220v3 (3.1GHz/4-core/8MB/80W); Intel® Xeon® E3-1230v3 (3.3GHz/4-core/8MB/80W, HT); Intel® Xeon® E3-1240v3 (3.4GHz/4-core/8MB/80W, HT); Intel® Xeon® E3-1265Lv3 (2.5GHz/4-core/8MB/45W, HT); Intel® Xeon® E3-1270v3 (3.5GHz/4-core/8MB/80W, HT); Intel® Xeon® E3-1280v3 (3.6GHz/4-core/8MB/82W, HT) |
Max CPU Clk Spd | Up to 3.6 GHz |
CPU Cache | 8 MB |
Max # Core(s) | 4 |
Memory Slot(s) | 4 DIMMs (2 Channels/ 2 DIMMs per channel) |
Memory Capacity | 32GB (4 x 8GB@1600MHz) |
Memory Expansion | Standard (Base Models) 4GB (1 x 4GB) UDIMM PC3-12800E (1600MHz); Standard ( Performance Models) 8GB (1 x 8GB) UDIMM PC3-12800E (1600MHz) |
Drive Bays | 4 SFF drive bays or 2 LFF Non hot plug/Hot plug |
Capacity | 8.0TB 2 x 4TB |
HDD Suitability | LFF/SFF SAS/SATA/SSD |
RAID Controller | HP Dynamic Smart Array B120i Controller |
RAID Options | HP Smart Array P222/512MB FBWC controller (Optional) |
Supported OS | Microsoft Windows Server; Red Hat Enterprise Linux (RHEL); SUSE Linux Enterprise Server (SLES); VMware |
USB Port(s) | USB 2.0 Ports 5 total: 2 rear, 2 front, 1 internal (Optional); USB 3.0 Ports 2 total: 2 rear |
PCI Slot(s) | 2 PCIe 3.0 expansion slots |
LAN Controller(s) | HP Ethernet 1Gb 2-port NC332i Adapter |
Bandwidth | 1 Gbps |
Graphics / GPU | 1 Rear standard video |
Standard | This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for s |
Optional | Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details. |
