Fujitsu PRIMERGY RX2540 M4 Rack Server

Dual Intel Xeon Skylake CPU System for The data center standard without compromise


More Image(s)

The FUJITSU Server PRIMERGY RX2540 M4 sets higher standards for usability, scalability and cost-efficiency. It is a 2U dual-socket rack erver ideal for running enterprise applications, collaboration and messaging workloads as well as traditional databases.
Availability: In stock

For details on how to purchase the Fujitsu PRIMERGY RX2540 M4 Rack Server, please click the button below to send us your details and brief requirements. We can then quote you accordingly.


Fujitsu PRIMERGY RX2540 M4 Rack Server

Plus, it substantially simplifies carrying out infrastructure-related tasks like server virtualization and consolidation. As one of the key innovations, versatile performance is guaranteed by a new generation of processors. The PRIMERGY RX2540 M4 can be equipped with two of the latest Intel® Xeon® Processor Scalable Family CPUs with up to 28 cores each.

Along with DDR4 memory technology with up to 3TB it boosts application performance to be able to cope with the increasing data growth and shortens time to business results. NV-DIMMs will be supported from mid-2018 on. The modular design of the server offers excellent expandability with up to 28 disk drives, high storage density, up to 8 PCIe Gen 3 I/O expansion slots. A variety of onboard DynamicLoM options, plus its dual-port embedded LAN meet future requirements, cost-optimized.

The PRIMERGY RX2540 M4 comes with two redundant hot-plug power supply units, offering up to 96% energy efficiency. The Cool-safe® Advanced Thermal Design allows for operation in ambient temperatures of up to 45 °C/104 °F. Both these features in line help to reduce operational expenses.

Versatile Performance for any computing need

  • Intel® Xeon® Processor Scalable Family CPUs with up to 28 cores relying on Intel® UltraPath Interconnect for an increased data rate between the CPUs
  • Up to 3,072 GB DDR4 memory with 2,666 MHz (24 DIMM slots), NV-DIMM (coming mid-2018)
  • 8x PCIe Gen3 slots
  • Ready for the future and data growth scenarios with the performance of two processors – marking the standard of tomorrow with an increase in computing power
  • DDR4 memories with higher bandwidth and lower consumption are the enabler; optimized for virtualization and clouds, data centers and high performance computing
  • Flexible expandability and diverse options for storage devices permits for the integration of existing and new SSD and HDD as needed. Less today, more in future – or vice versa.

Enhanced Features for enhanced Computing

  • Onboard LAN via OCP for basic LAN, DynamicLoM for extended requirements
  • Mix&Match storage drive bays: Ideal scalability of either up to 12x 3.5-inch or up to 24x 2.5-inch HDD/SSD/PCIe SSD+ an additional rear option of 4x 2.5-inch drives
  • 2x internal M.2 devices support for hypervisor installations
  • Power supply units with 96% energy efficiency
  • Fujitsu’s Cool-safe® Advanced Thermal Design for higher ambient temperatures in the data center

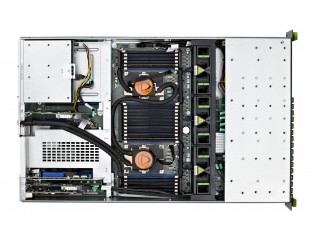

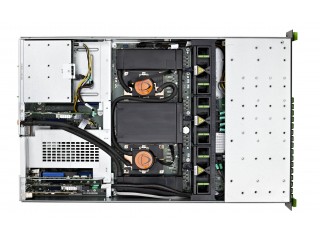

  • Optional liquid cooled base unit
  • Up to 2x GPGPU support within one system
  • The right Ethernet connection for all: Basic via onboard LAN, extended with DynamicLoM guarantees the highest flexibility to integrate the server into existing infrastructures – now and in future without overhauling the existing infrastructure
  • Flexible expandability and diverse options for storage devices permits for the integration of existing and new SSD and HDD as needed. Less today, more in future – or vice versa.
  • Not only “greener”, also less expensive over time: Highly efficient hot-plug power supplies save energy costs and make it easy to maintain the running system and ensure industry-leading uptime
  • Higher ambient temperatures lead to lower costs for cooling the data center
  • Less noise, latest technology to cool processors and memory directly where the heat is being generated
  • Optimal for VDI, CAD or future technologies such as Artificial Intelligence of Virtual Reality applications

Foundation for Trust and Security

  • Fujitsu ServerView Suite including tools for installation and deployment, permanent status monitoring and control
  • BIOS, firmware and selected software are updated free of charge
  • TPM2.0 modules and latest operating system support
  • Lifecycle investment protection
  • The comprehensive tools of the Fujitsu ServerView Suite eases the administrators life
  • Hardware and Software driven security features are very important in a fast-paced world, especially considering cybercrime

Simplified management

  • iRMC S5 comes with new interactive web UI and conforms to Redfish providing unified API support for heterogeneous environment
  • RAID Controller embedded onboard
  • Optimized for both: data centers and SMEs can now rely on latest generation iRMC S5 increasing security and server admin productivity
  • RAID support for the most common configurations is conveniently embedded on the system board and does not require a dedicated controller
Part No. S26361-K1567-V104
Manufacturer Fujitsu
End of Life? No
Preceeded By RX2540 M2
Rack Units 2
CPU Socket(s) 2 Intel® Xeon® processor
Compatible CPU(s) Intel® Xeon® Platinum 8100 Processor;
Intel® Xeon® Gold 5100/6100 Processor;
Intel® Xeon® Silver 4100 Processor;
Intel® Xeon® Bronze 3100 Processor
Max # Core(s) 4/6/8/10/12/14/16/18/20/22/24/26/28-Core
Memory Slot(s) 24
Memory Capacity 3TB
Memory Expansion prepared for NVDIMM/3D X-Point for less latency
Drive Bays 12x 3.5" or 24x 2.5"; optional rear cage for 4x PCIe SSD SFF
PCI Slot(s) Optional GPGPU devices
